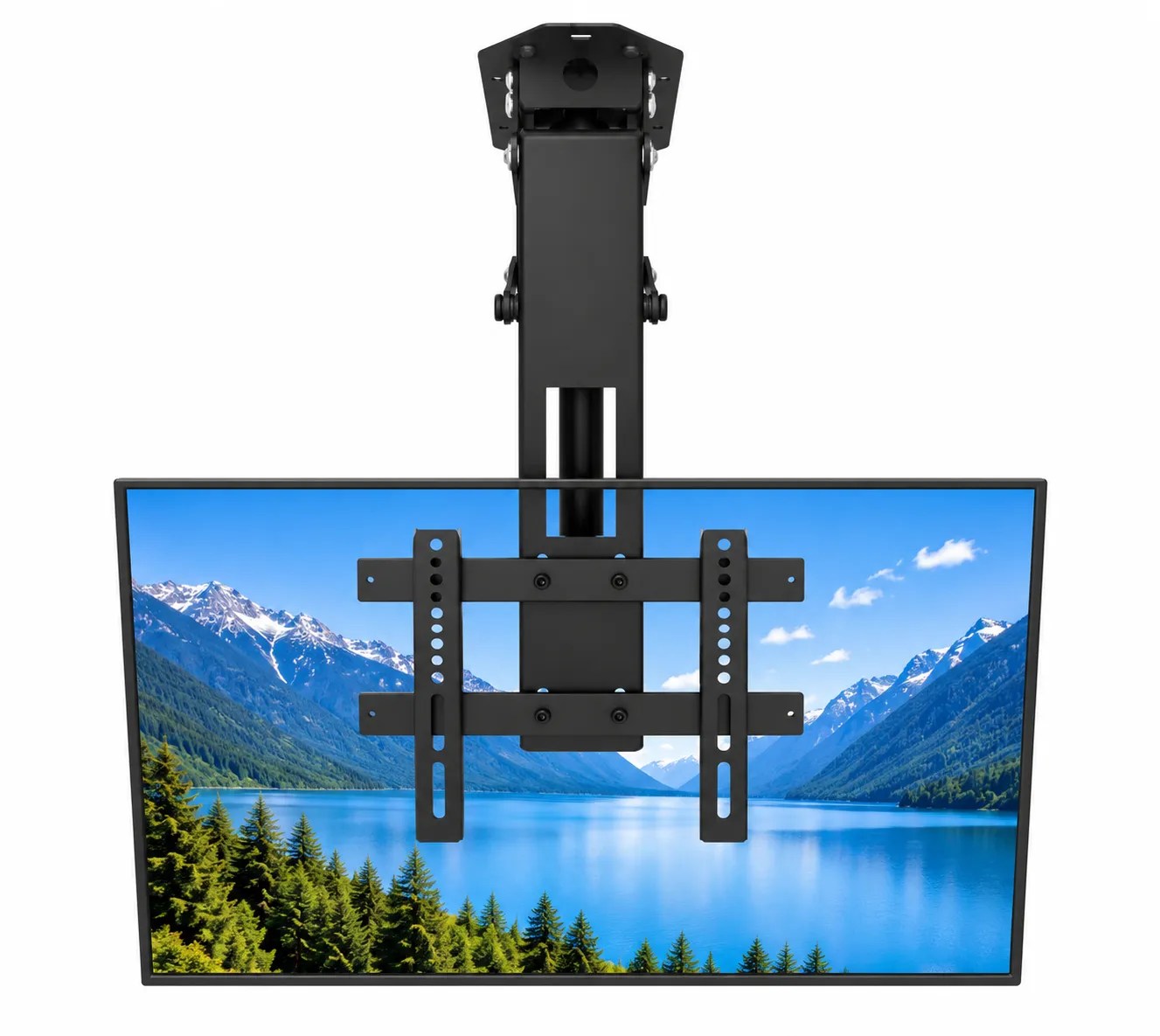

32″–42″ Motorised Fold-Down TV Ceiling Mount – 30 kg (SMFDC30)

SureMount® 32″–42″ Motorised Fold-Down TV Ceiling Mount – 30 kg (SMFDC30)

The SureMount® SMFDC30 Motorised Fold-Down TV Ceiling Mount is a compact, space-saving solution that allows your TV to fold neatly against the ceiling when not in use and lower into position when you’re ready to watch.

Designed for 32″–42″ TVs up to 30 kg, the SMFDC30 is particularly well suited to motorhomes, caravans, apartments, tiny homes, kitchens, bedrooms, offices and other spaces where conventional wall mounting isn’t practical.

At the heart of the SMFDC30 is a motorised actuator-driven mechanism, providing smooth and controlled movement without relying on a belt-drive system. The TV can be positioned anywhere through its 0°–85° operating range, allowing you to select the viewing angle that best suits the room.

The versatile ceiling plate allows installation on flat or sloped ceilings, making the SMFDC30 an excellent option for spaces with pitched or unconventional ceiling designs.

Operation is simple using the included wireless remote control or the onboard control panel. Programmable memory positions allow preferred viewing angles to be stored for quick recall, while an integrated collision-avoidance system helps protect the TV and surrounding objects if resistance is detected during movement.

---

🟧 Key Features

📺 32″–42″ TV Compatibility
Designed for most 32″–42″ TVs, subject to TV weight, VESA pattern and mounting-hole position.

⚖️ 30 kg Maximum Capacity
Supports TVs weighing up to 30 kg.

⚙️ Actuator-Driven Motor
Smooth, controlled motorised movement without a belt-drive mechanism that can loosen or slip over time.

↕️ 0°–85° Fold-Down Range
Move the TV from its stored ceiling position to virtually vertical, or stop it at your preferred viewing angle.

📐 VESA 100×100 & 200×200 mm
Compatible with TVs using 100×100 mm or 200×200 mm VESA mounting patterns.

🏠 Flat or Sloped Ceiling Installation
The adjustable ceiling mounting arrangement allows installation on both horizontal and angled ceilings.

🎮 Wireless Remote Control
Raise, lower and position the TV conveniently from anywhere in the room.

💾 Programmable Memory Positions
Save preferred viewing positions for quick and repeatable adjustment.

🛡️ Collision Avoidance
Integrated resistance detection stops movement if the TV encounters an obstruction.

🔇 Smooth, Quiet Operation
Ideal for living areas, bedrooms, motorhomes and other spaces where quiet operation is important.

📦 Compact Ceiling Storage
Folds the TV neatly up towards the ceiling when not required, freeing valuable wall and living space.

---

📏 Key Measurements

📐 Ceiling to centre of VESA mount: 420 mm
📐 Ceiling to back of TV: 110 mm
📐 Ceiling mounting plate: 350 × 130 mm
📐 Mounting arm: 290 × 230 mm

🔧 Important TV Fitment Check

TV screen size alone does not determine compatibility with a fold-down ceiling mount.

Before installation, check:

• TV weight: Maximum 30 kg
• VESA pattern: 100×100 mm or 200×200 mm
• Mounting-hole position: The distance from the top edge of the TV to the centre of the VESA mounting holes must be less than 420 mm

This final measurement is particularly important. If the mounting holes sit too low on the back of the TV, the top of the screen may interfere with the ceiling as the mount moves into the viewing position.

Some larger lightweight TVs may physically fit the SMFDC30 if all three requirements are met; however, 32″–42″ remains the recommended screen-size range.

---

🚐 Ideal Applications

🏕️ Motorhomes & Caravans
Store the TV overhead when travelling or when additional living space is required.

🏠 Tiny Homes & Apartments
Ideal where available wall space is limited.

🍳 Kitchens
Create a convenient TV installation without permanently occupying wall or bench space.

🛏️ Bedrooms
Fold the TV away when not in use for a cleaner, less cluttered room.

🏢 Offices & Commercial Spaces
Useful where a display is required only occasionally or where wall mounting isn’t practical.

🏡 Sloped-Ceiling Rooms
Suitable for lofts, attic rooms and other spaces with angled ceilings.

---

📄 Technical Documentation

Installation Instructions – SMFDC30 – SMFDC30 Installation Instructions

Product Measurements – SMFDC30 –SMFDC30 Measurements

Datasheet – SMFDC30 – SureMount_SMFDC30_Datasheet

---

❓ FAQs — SureMount® SMFDC30 Motorised Fold-Down TV Ceiling Mount

1️⃣ How do I know if the SMFDC30 will fit my TV?

Check these three measurements:

Weight: Your TV must weigh 30 kg or less.

VESA: The mounting pattern must be 100×100 mm or 200×200 mm.

Mounting-hole position: Measure from the top edge of your TV to the centre of the VESA mounting holes. This distance must be less than 420 mm.

All three requirements should be checked rather than relying on screen size alone.

---

2️⃣ Can the SMFDC30 be installed on a sloped ceiling?

Yes. The ceiling mounting arrangement allows the SMFDC30 to be installed on flat, pitched or sloped ceilings.

This makes it particularly useful in motorhomes, caravans, lofts, attic rooms and other spaces with angled ceilings.

---

3️⃣ Why does the SMFDC30 use an actuator rather than a belt-drive system?

The actuator provides direct, controlled movement without relying on a drive belt.

This helps provide smooth and consistent operation and eliminates the potential for a belt to stretch or slip over time.

---

4️⃣ Why is the 30 kg weight limit important?

Staying within the rated 30 kg maximum load helps ensure:

• Smooth movement
• Quiet operation
• Reduced load on the actuator
• Long-term reliability
• Consistent positioning

The weight of the TV should always be checked before installation.

---

5️⃣ What happens if the TV hits something while moving?

The SMFDC30 incorporates a collision-avoidance system designed to detect resistance and stop movement if an obstruction is encountered.

This helps protect the TV, mount and surrounding objects during operation.

---

6️⃣ Can I save my preferred viewing angle?

Yes. The programmable memory function allows preferred positions to be stored and recalled using the remote.

This is particularly useful when the TV is regularly moved between its stored and viewing positions.

---

7️⃣ Can I stop the TV part-way down?

Yes. The TV does not need to be either fully stored or fully lowered.

It can be positioned anywhere through its 0°–85° operating range, allowing the viewing angle to be adjusted to suit the installation.

---

8️⃣ Will a 55″ TV fit the SMFDC30?

Possibly, but 55″ TVs are outside the recommended 32″–42″ screen-size range.

A larger TV can only be considered if:

• It weighs 30 kg or less
• It uses a 100×100 or 200×200 mm VESA pattern
• The distance from the top of the TV to the centre of the VESA holes is less than 420 mm

Many 55″ TVs will not meet all of these requirements. If you’re unsure, send us the TV make and model and we can help check compatibility.

---

9️⃣ Can I operate the mount without the remote?

Yes. The SMFDC30 includes an onboard control panel in addition to the wireless remote.

The control panel can also be removed after setup if it isn’t required for everyday operation.

---

🔟 What comes with the SMFDC30?

The package includes the motorised ceiling mount assembly, wireless remote control, onboard control panel, TV mounting hardware, VESA mounting hardware and installation instructions.
