TV Lift Swivel Conversion Kit (SMLFT-SWIVEL)

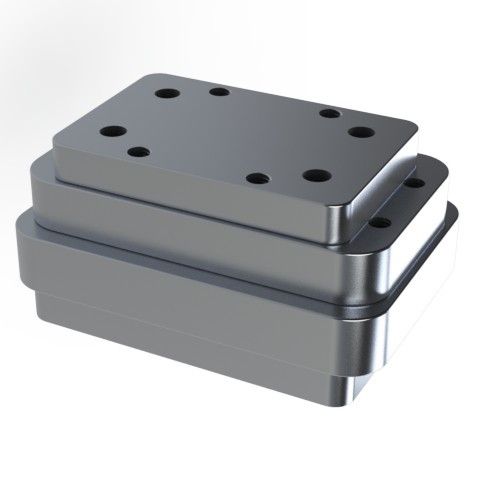

SureMount TV Lift Swivel Conversion Kit (SMLFT-SWIVEL)

Enhance Your SureMount Motorised TV Lift with 360° Swivel Functionality

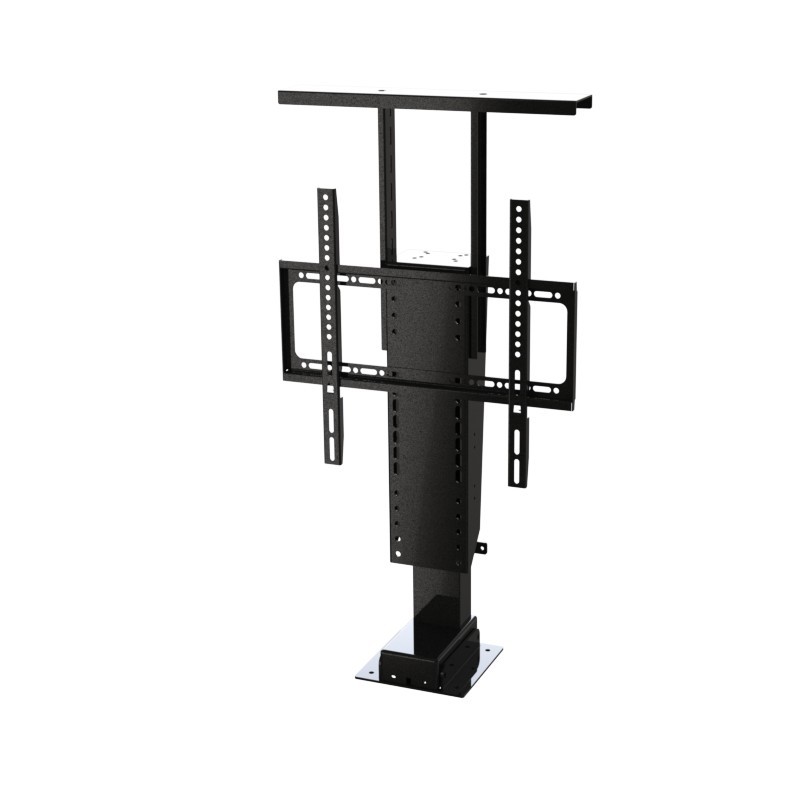

Upgrade your SureMount Remote-Controlled Motorised TV Lift with our versatile TV lift swivel conversion kit—compatible with all models (S650, S1000, and S1300).

Built for durability and smooth operation, this kit allows you to manually swivel your TV a full 360°, providing the perfect viewing angle no matter where you’re seated. It’s the ideal solution for custom-built cabinets or cupboards, where the TV can be neatly hidden when not in use and easily positioned for optimal visibility when needed.

Operation is effortless: raise or lower your TV using the remote or control panel, then manually adjust the swivel to suit your space.

Note: The motorised lift unit cannot be ceiling-mounted when used with the swivel conversion kit.

Key Features:

✔ Fits all TV lift Models (S650, S1000, and S1300)
✔ Manually swivel your TV a full 360°
✔ Supports up to 60kg for secure mounting

The swivel unit adds 55mm to the standard tower height.

Note: Cabinet not included. Contact your local builder or cabinet maker to design/build a customised cabinet to suit your TV and needs.

Installation Instructions for SMLFT-SWIVEL TV Lift Swivel Conversion Kit

Installation Instructions: SMLFT Swivel Instructions

Installation Video: https://youtube.com/shorts/0F7foHKXk30?feature=share

Swivel Measurements: SMLFT-SWIVEL Measurements

Lift Measurements:

SMLFT-S650S Measurements

SMLFT-S1000S-Measurements

SMLFT-S1300S-Measurements

TV Lift Swivel Conversion Kit – FAQ

Q: What does the swivel conversion kit do?
A: The kit lets you rotate your TV left or right after it has been lifted, giving you a full 360° swivel range for flexible viewing angles.

Q: Which TV lifts is this kit compatible with?
A: It’s designed specifically for SureMount® floor-mounted TV lifts (S650, S1000, S1300). It is not compatible with ceiling-mounted or face-down lift models.

Q: What TV sizes and weights will it support?
A: The swivel kit supports TVs from 32″ to 75″, up to 60kgs (maximum lift weight rating). Please check your lift model for exact limits.

Q: Does the swivel function work automatically?
A: No – the swivel is a manual adjustment. Once the TV is raised to your preferred height, you can swivel it by hand to the desired position.

Q: Will adding the swivel kit reduce the lift height or stability?
A: The lift will still extend to its full travel height. Stability is not affected when installed correctly, though we recommend swiveling gently with two hands on larger TVs.

Q: Can I use the swivel kit with a ceiling-mounted configuration?
A: No. The swivel kit is designed for vertical floor-mounted lifts only. Ceiling mounts already include their own angle options and are not compatible.

Q: Do I need any special tools to install it?
A: Standard hand tools (Allen keys) are sufficient. The kit includes full instructions and all necessary fittings.

Q: Will adding the swivel kit affect my warranty?
A: No – when installed as per instructions, your SureMount® lift warranty remains valid.

Q: Can I retrofit this to an existing lift, or only order with a new one?
A: Both options are available. The kit can be retrofitted to your existing compatible lift. However, some older models may require an upgraded bracket holder and TV bracket.

Q: Is the swivel conversion reversible?
A: Yes, you can remove the swivel kit and return the lift to its fixed mounting configuration if required.
