42″–75″ Height Adjustable Articulating Mobile TV Stand (SMMARTS)

SureMount 42″–75″ Height Adjustable Articulating Mobile TV Stand (SMMARTS)

The SureMount® SMMARTS Height Adjustable Articulating Mobile TV Stand combines mobility with an exceptional range of screen adjustment, making it ideal for spaces where the TV or display needs to adapt to different users, activities and viewing positions.

Unlike a conventional mobile TV stand with a fixed screen position, the SMMARTS allows you to manually adjust the screen height using an easy-to-operate crank handle, swivel the screen 20° left or right, and rotate it through 90° between landscape and portrait orientation.

The screen can also be tilted +5° / −5°, giving you even more control over the final viewing angle.

Designed for TVs and displays from 42″–75″ and weighing up to 50 kg, the SMMARTS is equally at home in meeting rooms, classrooms, training facilities, offices, studios, healthcare environments and residential spaces.

A compact 600 × 400 mm base keeps the footprint manageable, while four smooth-rolling castors make it easy to reposition the display when required. Once in position, the castors can be locked to help keep the stand securely in place.

The result is a highly versatile mobile display solution that lets you adjust the height, viewing direction and screen orientation without needing to reposition or remount the TV.

---

🟨 Key Features

📺 Fits Most 42″–75″ TVs
Designed for a wide range of medium to large TVs and commercial displays.

🏋️ Maximum Load – 50 kg
Strong construction supports TVs and displays weighing up to 50 kg.

📐 VESA Compatibility – 100 × 100 to 600 × 500 mm
Compatible with a broad range of standard TV and display mounting patterns.

↕️ Manual Crank Height Adjustment
Use the winding handle to smoothly raise or lower the display until you reach the ideal viewing height.

📏 Wide Height Adjustment Range
Overall adjustable height of approximately 886–1533 mm, providing substantial flexibility for seated, standing and presentation applications.

↔️ ±20° Screen Swivel
Swivel the TV up to 20° left or right to direct the screen towards different parts of the room without moving the entire stand.

🔄 Landscape to Portrait Rotation
Manually rotate the display ±90°, making it easy to switch between conventional landscape viewing and portrait-format digital content. Display can be locked in position when changing orientation.

↕️ +5° / −5° Screen Tilt
Fine-tune the vertical viewing angle to suit the position and height of the viewer.

🛞 Smooth-Rolling Lockable Castors
Four castors allow the stand to be moved between rooms or viewing positions, then locked once positioned.

🪵 Solid Wood Base
The substantial 600 × 400 mm wood base provides a clean furniture-style appearance while avoiding the fragility associated with glass bases.

🔒 Safety Lock
The screen adjustment mechanism incorporates a locking system to help secure the selected position.

🪝 Crank Handle Storage
When height adjustment is complete, the winding handle can be removed and conveniently stored on the stand.

🔌 Integrated Cable Management
Cable clips help route power and AV cables neatly down the stand rather than leaving them hanging behind the screen.

---

🔧 Four Ways to Adjust Your Screen

The SMMARTS gives you considerably more control over the screen position than a conventional mobile TV stand.

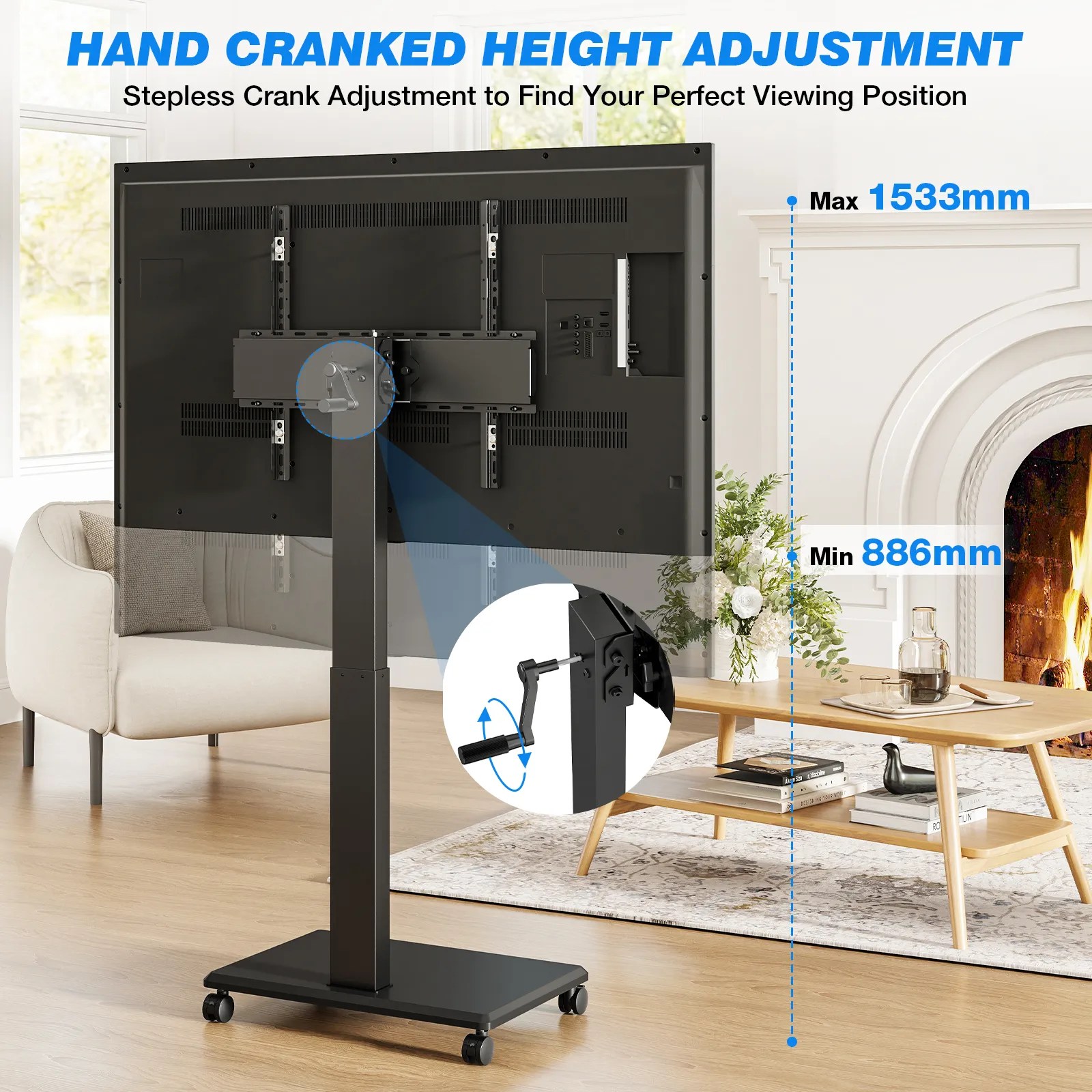

1. ↕️ Adjust the Height

Insert the supplied crank handle and wind it to raise or lower the screen.

This allows the same display to be positioned appropriately for different situations — from seated meetings and home viewing through to standing presentations or exercise instruction.

The manual confirms that the crank is turned clockwise to raise the vertical pole and counter-clockwise to lower it.

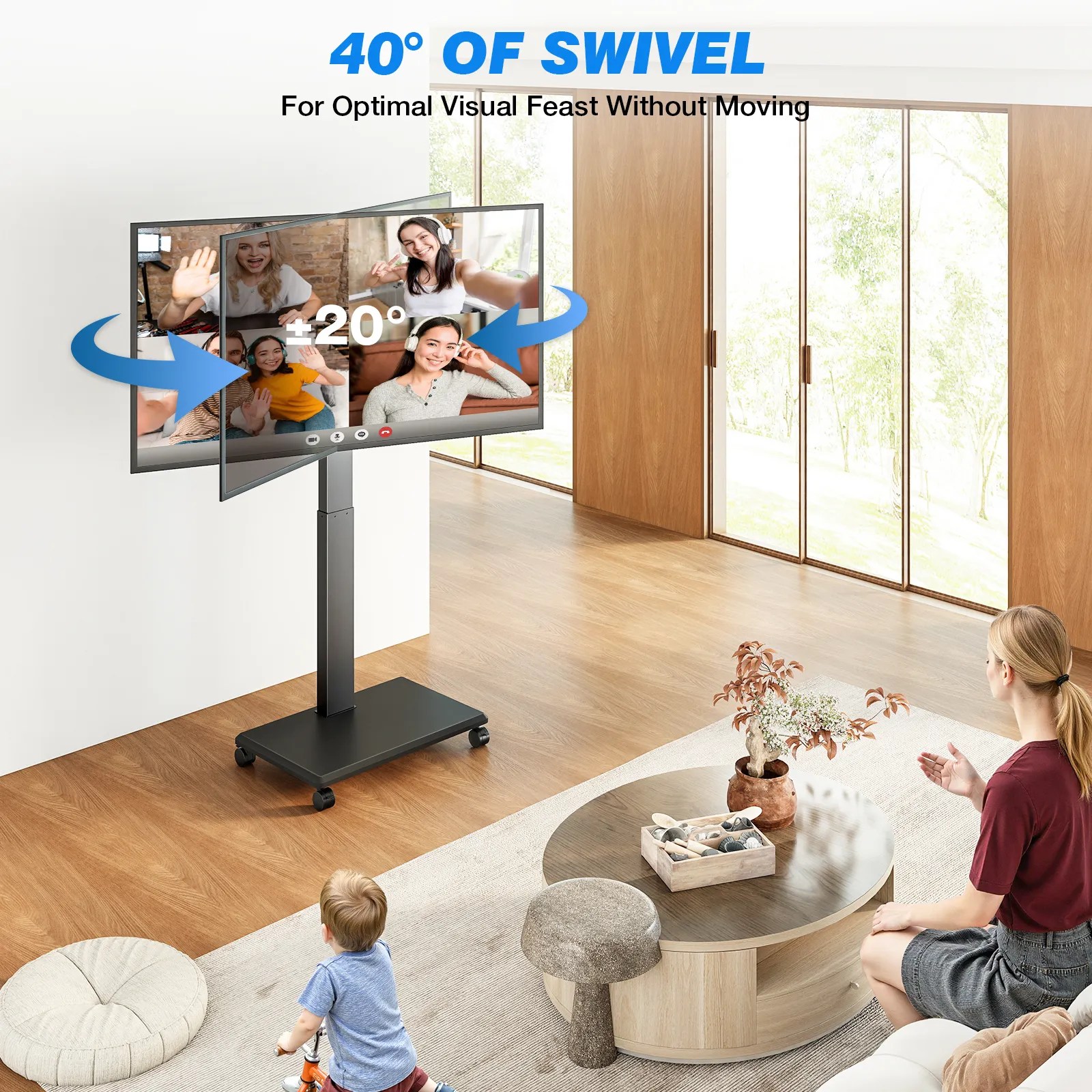

2. ↔️ Swivel Left or Right

The screen can swivel 20° to either side.

Rather than moving the entire trolley, simply turn the display towards the audience or viewing position.

This is particularly useful in meeting rooms, classrooms and shared spaces where people may be viewing the screen from different parts of the room.

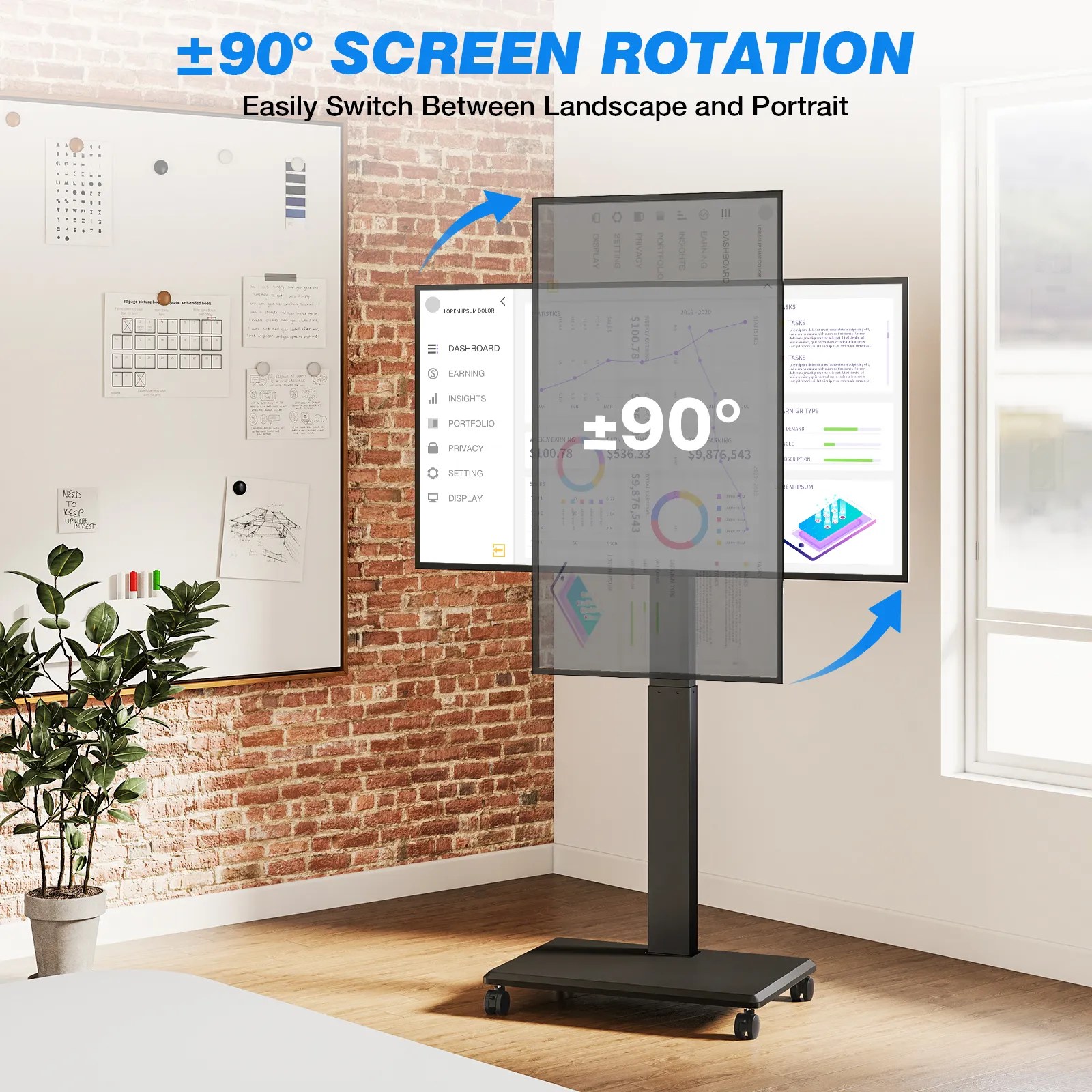

3. 🔄 Switch Between Landscape and Portrait

The mounting head allows the screen to be manually rotated through 90°, so compatible displays can be used in either landscape or portrait orientation.

Landscape is ideal for conventional television, presentations and video conferencing.

Portrait is particularly useful for digital signage, menus, schedules, instructional material, exercise content and vertically formatted information.

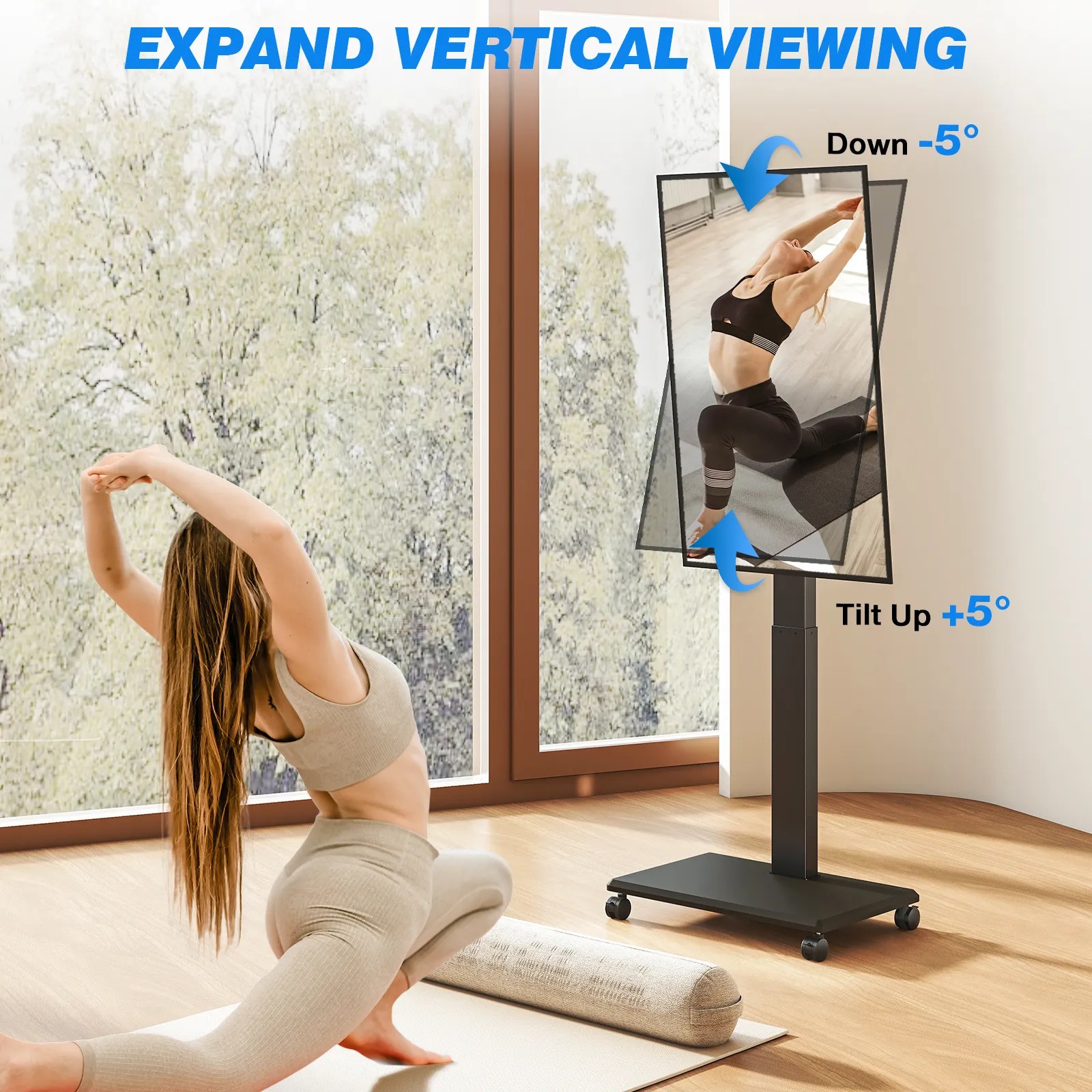

4. ↕️ Fine-Tune the Tilt

A +5° / −5° tilt adjustment provides the final degree of control, helping compensate for different screen heights and viewing positions.

---

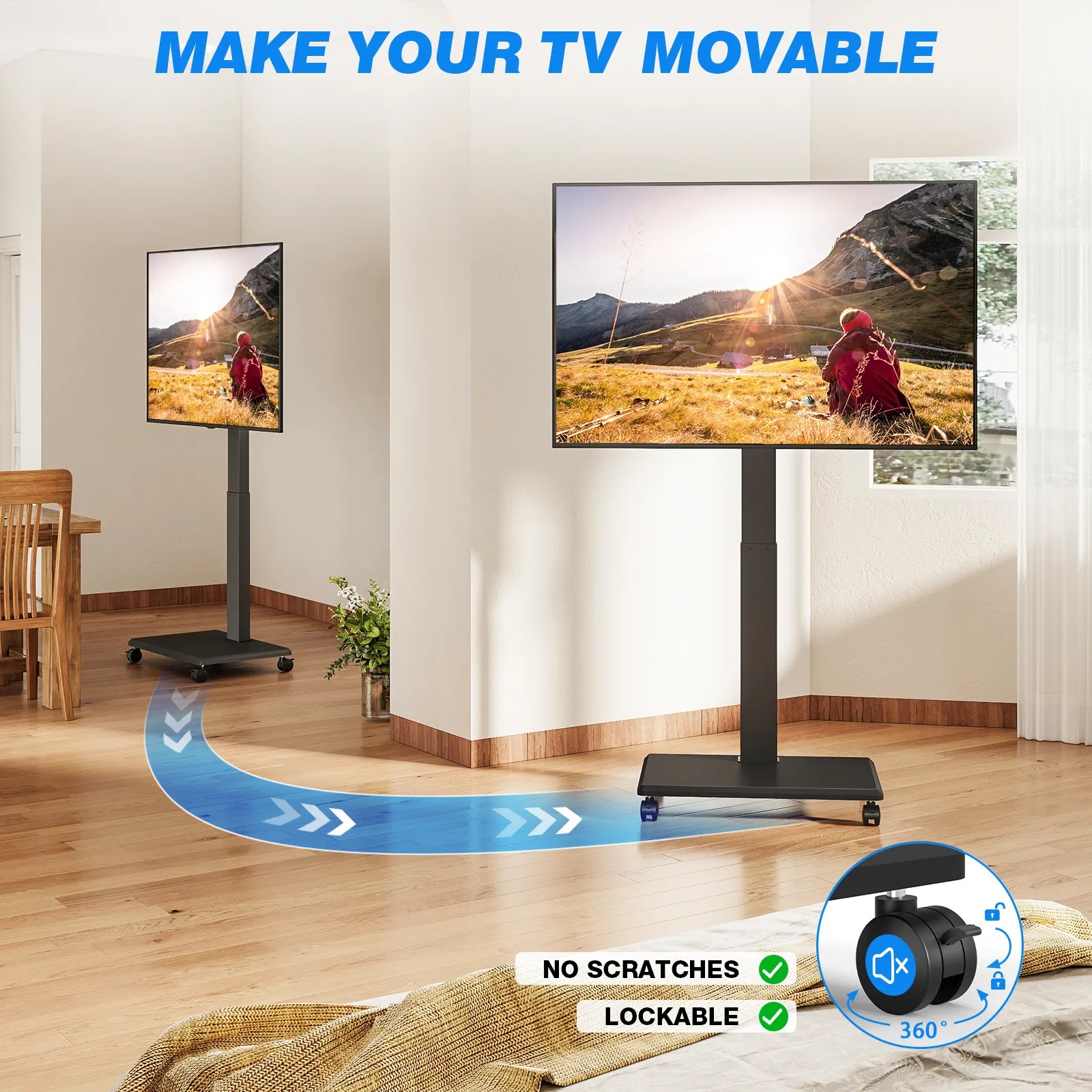

🛞 Move the Screen Where You Need It

The SMMARTS turns a fixed TV or display into a genuinely flexible resource.

Its four castors allow the complete stand to be moved between rooms or repositioned within the same space.

This makes it particularly useful where one screen needs to serve several purposes rather than having dedicated displays permanently installed in every location.

Once positioned, lock the castors before using the display.

For safety, the supplied manual recommends moving the stand with two people and removing the TV and other equipment for longer-distance moves.

---

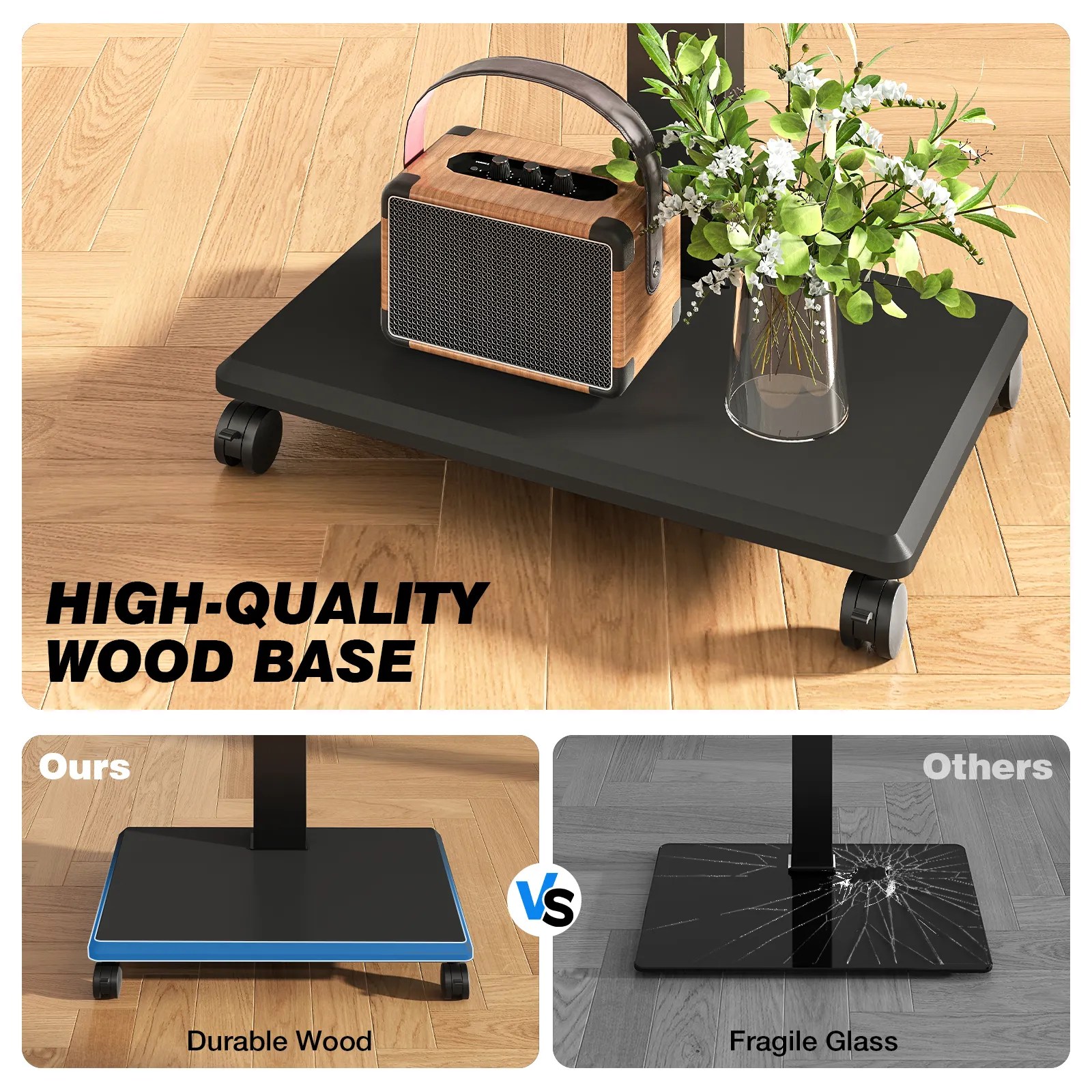

🪵 Furniture-Style 600 × 400 mm Base

Rather than using a large metal tripod or glass base, the SMMARTS uses a clean 600 × 400 mm wood base.

The low-profile rectangular platform provides a contemporary appearance that works well in both commercial and residential environments.

Its compact footprint also makes the stand easier to position close to furniture, meeting tables or walls.

---

🏠 One Stand – Multiple Applications

The combination of mobility, height adjustment, swivel and screen rotation makes the SMMARTS suitable for far more than simply watching TV.

It is particularly well suited to:

• 🏢 Offices & Meeting Rooms – move a shared display between meetings and adjust it for presentations or video conferencing.
• 🎓 Schools & Training Rooms – alter screen height and direction to suit different classroom layouts.
• 🧘 Fitness, Pilates & Yoga Studios – rotate into portrait orientation and position the screen where participants can see instruction clearly.

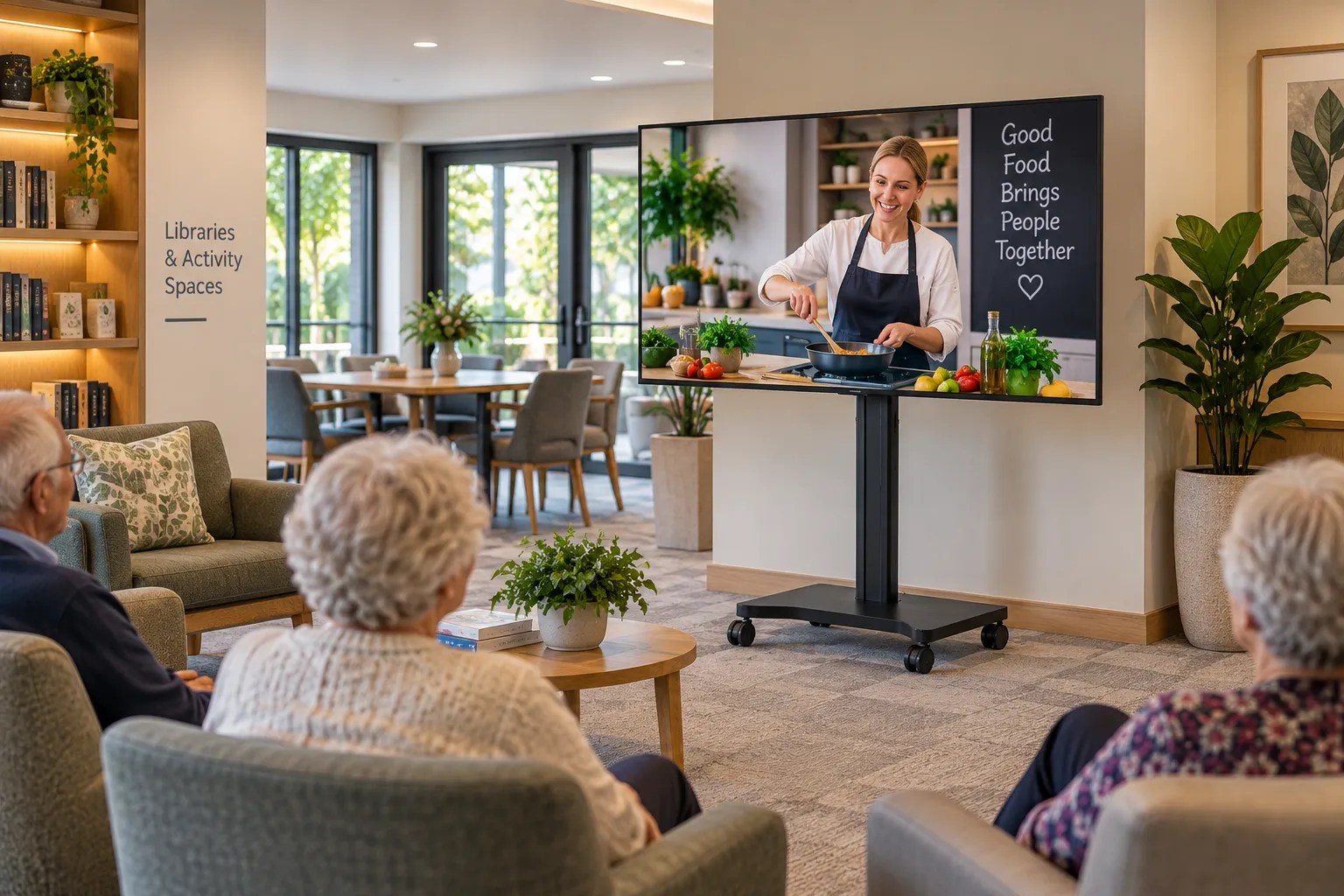

• 🏥 Healthcare & Aged Care – move a display between rooms or activities and adjust the viewing height as required.
• 🛍️ Retail & Digital Signage – use landscape or portrait orientation depending on the content.
• 🏠 Home Living – move the TV between living, dining or entertaining areas without permanently wall mounting it.

---

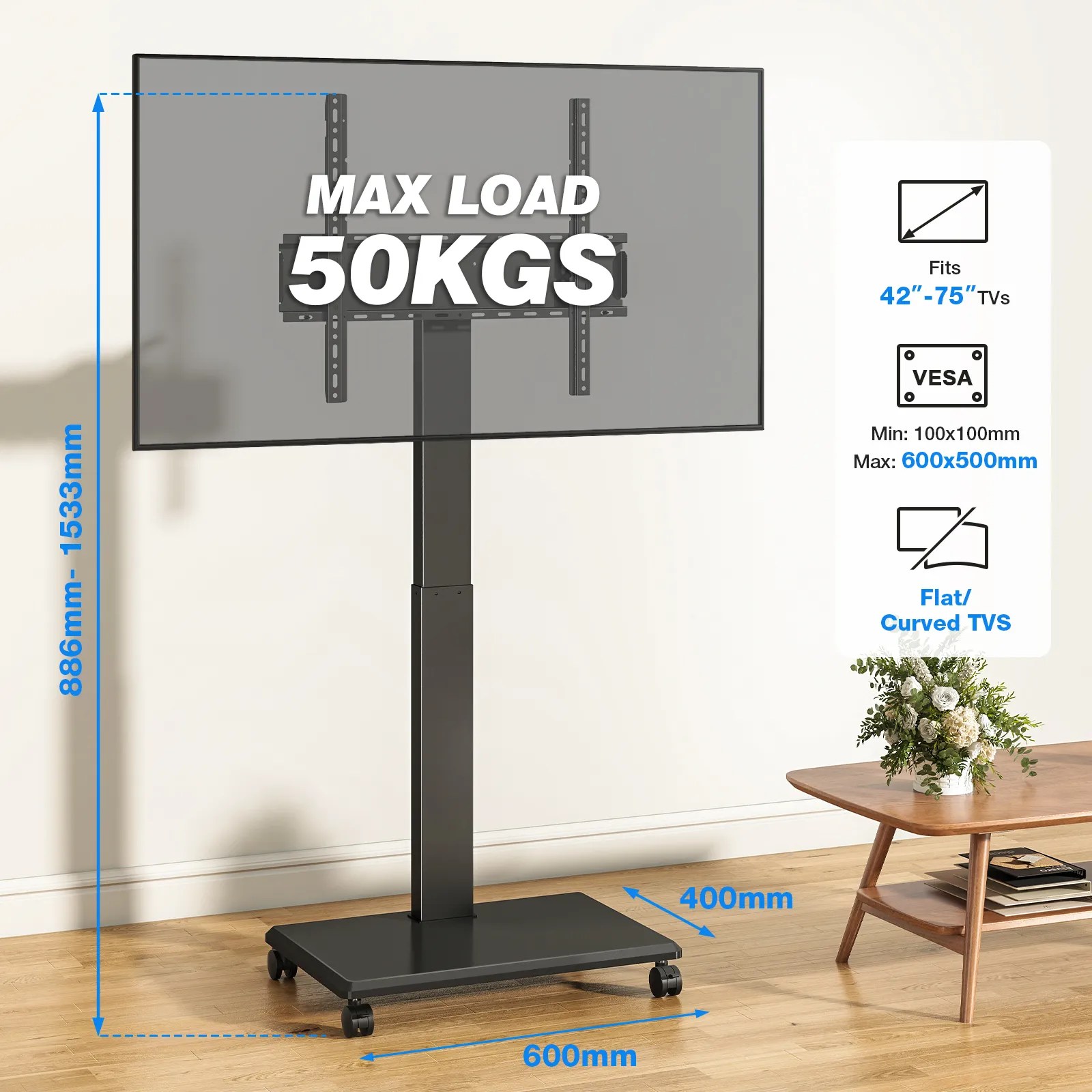

📐 Compatibility & Key Specifications

Before installation, check that your TV falls within these requirements:

Recommended TV size: 42″–75″
Maximum TV weight: 50 kg
VESA: 100 × 100 to 600 × 500 mm
Overall adjustable height: approximately 886–1533 mm
Screen swivel: ±20°
Screen rotation: ±90° landscape/portrait
Screen tilt: +5° / −5°
Base dimensions: 600 × 400 mm
Mobility: Four castors with locking function
Height adjustment: Manual winding crank
Cable management: Included

The stand can cater for flat, curved and irregular-backed TVs, with spacer configurations as required.

---

🔧 Installer’s Tip – Set the TV Position Before Final Adjustment

The SMMARTS provides several ways to fine-tune the finished screen position, so it is worth taking a little extra time during initial assembly.

Start by selecting the most appropriate mounting holes on the vertical TV arms. The installation manual shows that alternative mounting positions can be used to initially position the TV higher or lower on the bracket before using the stand’s crank adjustment.

Once the TV is installed:

1. Set the approximate screen height using the crank.

2. Adjust the tilt to suit the viewing height.

3. Swivel the screen towards the primary viewing position.

4. Select landscape or portrait orientation.

This gives you the widest practical adjustment range while keeping the screen centred and balanced on the stand.

---

🔌 Installer’s Tip – Allow Enough Cable Length for Movement

Because the screen can raise, lower, swivel and rotate, don’t make your power and AV cables too tight.

Allow sufficient cable length for the full range of screen movement and route the cables through the supplied management clips.

Before moving or rotating the display, check that HDMI, power and other connected cables have enough slack to move freely without pulling on the TV’s sockets.

---

📄 Technical Documents

SMMARTS Installation Manual – includes assembly instructions, TV mounting options, crank height adjustment, ±20° swivel operation, landscape/portrait rotation, cable management and moving instructions.

SMMARTS-Measurements

SureMount_SMMARTS_Datasheet

---

❓ FAQs – SMMARTS Height Adjustable Articulating Mobile TV Stand

1️⃣ What size TV will the SMMARTS hold?

The SMMARTS is designed for most 42″–75″ TVs and displays weighing up to 50 kg, provided the TV has a compatible VESA mounting pattern.

2️⃣ What VESA sizes does it support?

It supports VESA mounting patterns from 100 × 100 mm up to 600 × 500 mm.

3️⃣ How do I adjust the TV height?

Height is adjusted using the supplied manual crank handle. Turn the crank to smoothly raise or lower the screen until it reaches the desired viewing position.

There’s no electric motor or power supply required for the height adjustment.

4️⃣ What is the height adjustment range?

The supplied dimensional drawing shows an overall height range of approximately 886 mm to 1533 mm, depending on the selected position.

5️⃣ Can I turn the TV towards different parts of the room?

Yes.

The mounting head provides ±20° swivel, allowing the TV to turn up to 20° left or 20° right without moving the base.

6️⃣ Can I rotate the TV into portrait orientation?

Yes.

The screen can be manually rotated through 90° between landscape and portrait orientation, making the stand particularly useful for presentations, digital signage and vertically formatted content.

7️⃣ Does the TV tilt?

Yes.

The mounting mechanism provides approximately +5° / −5° tilt, allowing you to fine-tune the vertical viewing angle.

8️⃣ Can I move the stand with the TV attached?

The stand is designed to be mobile, with four rolling castors.

For routine repositioning, unlock the castors and move the stand carefully on a suitable level surface. The installation manual recommends two people when moving the stand and recommends removing the TV and other equipment when moving it longer distances.

9️⃣ Can the wheels be locked?

Yes.

The castors can be locked once the stand is in its desired position.

🔟 Where does the crank handle go when I’m not using it?

The crank is removable and has a dedicated storage position on the stand, so it doesn’t need to be left protruding from the adjustment mechanism.

1️⃣1️⃣ Does it have cable management?

Yes.

Cable management clips are supplied to help route power and AV cables neatly down the stand.

1️⃣2️⃣ Is it suitable for curved TVs?

Yes, provided the TV is within the stand’s size, weight and VESA requirements.

The supplied mounting system includes different spacer configurations for flat, curved and irregular-backed TVs.

1️⃣3️⃣ Is this only for commercial use?

No. The SMMARTS works well in both commercial and residential environments.

Its combination of a furniture-style base, compact footprint and wide range of screen adjustment makes it suitable for homes as well as offices, schools, training rooms, studios, healthcare facilities and retail environments.

1️⃣4️⃣ Why choose this over a standard mobile TV stand?

A standard trolley generally lets you move the TV from one location to another.

The SMMARTS goes considerably further by allowing you to adjust the screen height, left/right viewing angle, vertical tilt and landscape/portrait orientation.

That makes it particularly useful where the same display needs to accommodate different rooms, audiences, activities or types of content.
