600mm Video Wall Tilt TV Arm (SARTILT600)

SureMount 600mm Video Wall Tilt TV Arm (SARTILT600)

The SureMount SARTILT600 is a heavy-duty tilt TV arm designed for professional video wall installations where larger screens require adjustable viewing angles.

It clips directly onto the SureMount aluminium rail system, making it quick and easy to add, remove, or reposition screens as required.

The SARTILT600 is ideal for menu boards, commercial displays, retail signage, and control room environments where the screens may need to tilt forward for improved visibility.

With several tilt angle options and support for larger VESA patterns, the SARTILT600 is well suited to larger screens in both landscape and portrait orientation.

---

🟨 Key Features

📺 Designed for 40″–100″ Screens
Suitable for both landscape and portrait installations.

🏋️ Maximum Load: 135kg

📐 Supports VESA up to 900×600mm
Supports vertical VESA patterns up to 600mm.

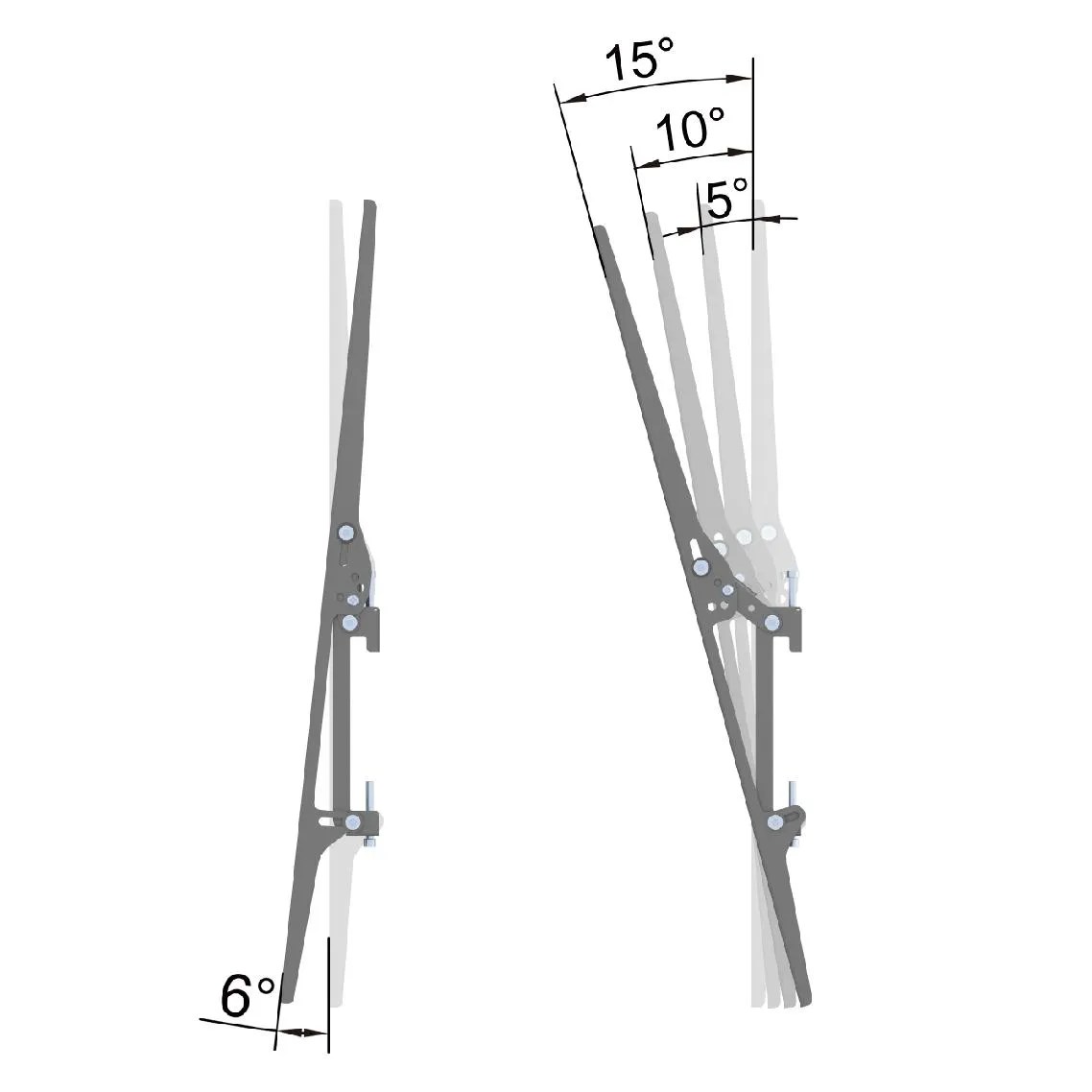

🔄 Several Tilt Options Available
Choose from:

• -6°
• 0°
• +5°
• +10°
• +15°

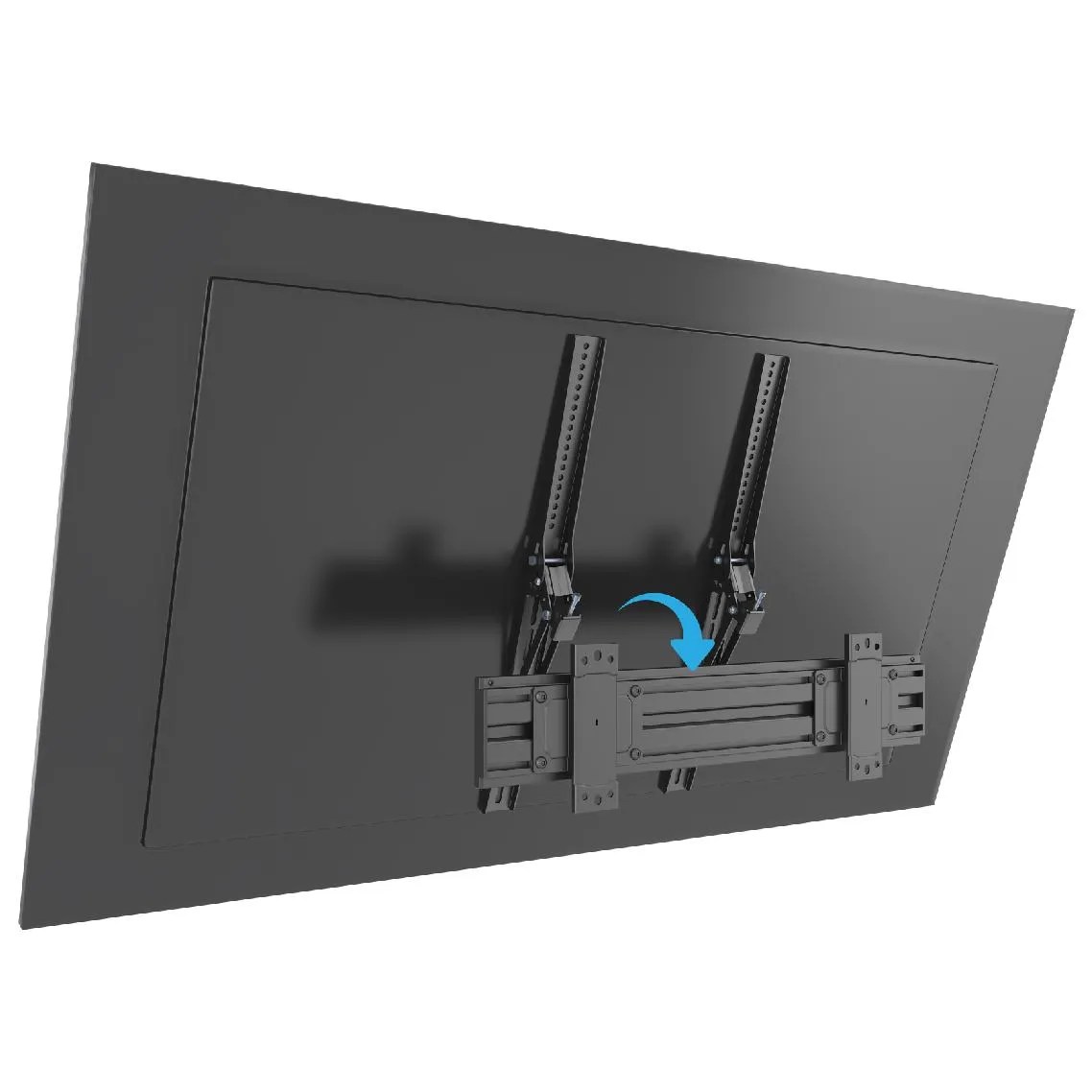

🔄 Clips Directly Onto SureMount Rails
Compatible with:

• SAR480
• SAR680
• SAR1000

🧩 Ideal for Commercial Video Walls
Perfect for menu boards, control rooms, retail displays, and signage walls.

🎨 Black Powder-Coated Finish
Professional appearance to match the SureMount rail system.

📏 Arm Size: 45 × 630 × 42.5mm

---

⚠️ Compatibility Note

👉 Designed for:

• 40″–100″ screens
• VESA patterns up to 900×600mm

👉 Compatible with:

• SAR480
• SAR680
• SAR1000

👉 Maximum load:

• 135kg per screen

---

📄 Technical Documents

SARTILT600 Tech Spec: SARTILT600 Tech Spec

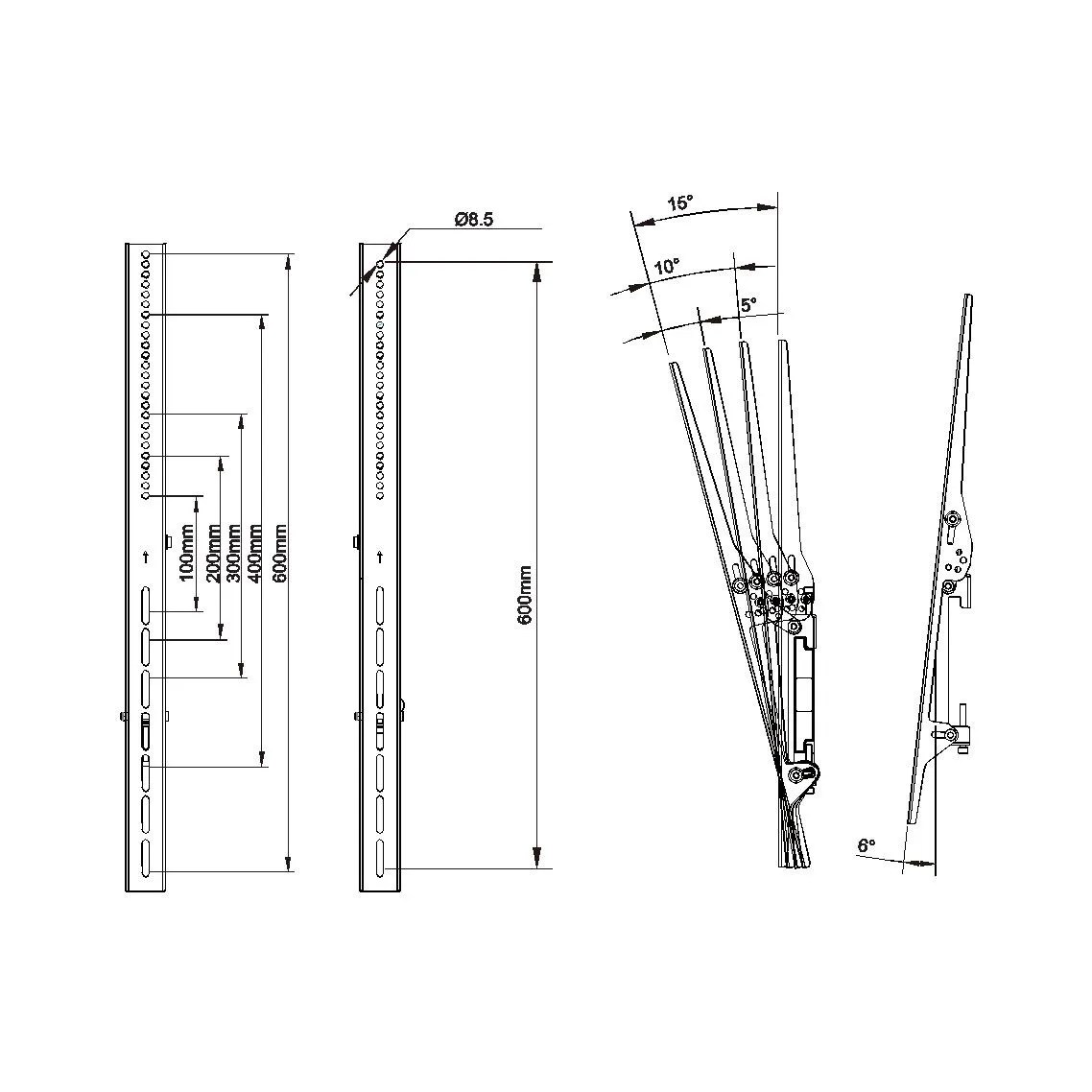

SARTILT600 Measurements: SARTILT600 Measurements

---

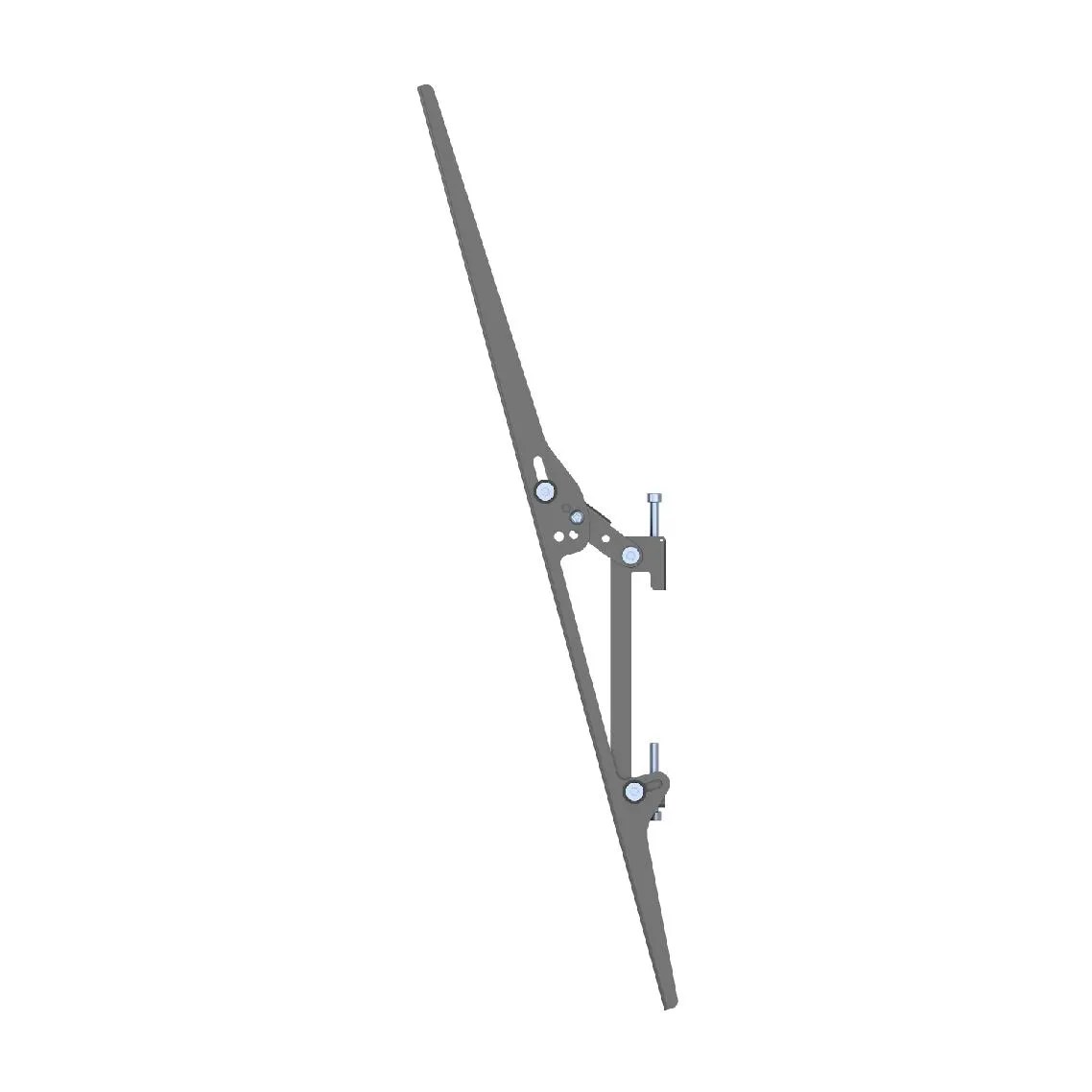

🔧 Installer’s Tip — Forward Tilt Improves Visibility

The SARTILT600 is particularly useful when screens are mounted above eye level.

• Perfect for menu boards and overhead displays
Forward tilt improves readability and reduces glare.

• Use larger tilt angles for higher screen positions
Screens mounted well above eye level often benefit from +10° or +15° tilt.

• Portrait screens may require different tilt settings
Tall portrait screens often look best with a smaller tilt angle than wide landscape screens.

👉 Even a small amount of tilt can make a large difference to the viewing experience.

---

🧠 Need Help Designing Your Video Wall?

Building a video wall with SureMount is simple using the modular system.

To get a customised solution, provide:

• Screen size (or model / VESA)
• Number of screens and layout (e.g. 2×2, 3×3)
• Landscape or portrait orientation

👉 We can help design the correct rail and mounting configuration.

---

❓ FAQs – 600mm Video Wall Tilt TV Arm (SARTILT600)

1️⃣ What size screens does this support?

Suitable for 40″–100″ screens.

---

2️⃣ What VESA patterns does it support?

Supports VESA patterns up to 900×600mm.

---

3️⃣ What rails does it work with?

Compatible with:

• SAR480
• SAR680
• SAR1000

---

4️⃣ What tilt options are available?

The SARTILT600 supports:

• -6°
• 0°
• +5°
• +10°
• +15°

---

5️⃣ When should I choose a tilt arm instead of a fixed arm?

Tilt arms are best when:

• Screens are mounted above eye level
• You need better viewing angles
• You are building menu boards or overhead displays
