Dual Monitor Wall Mount 24″–32″ | SVWM2x1-F100

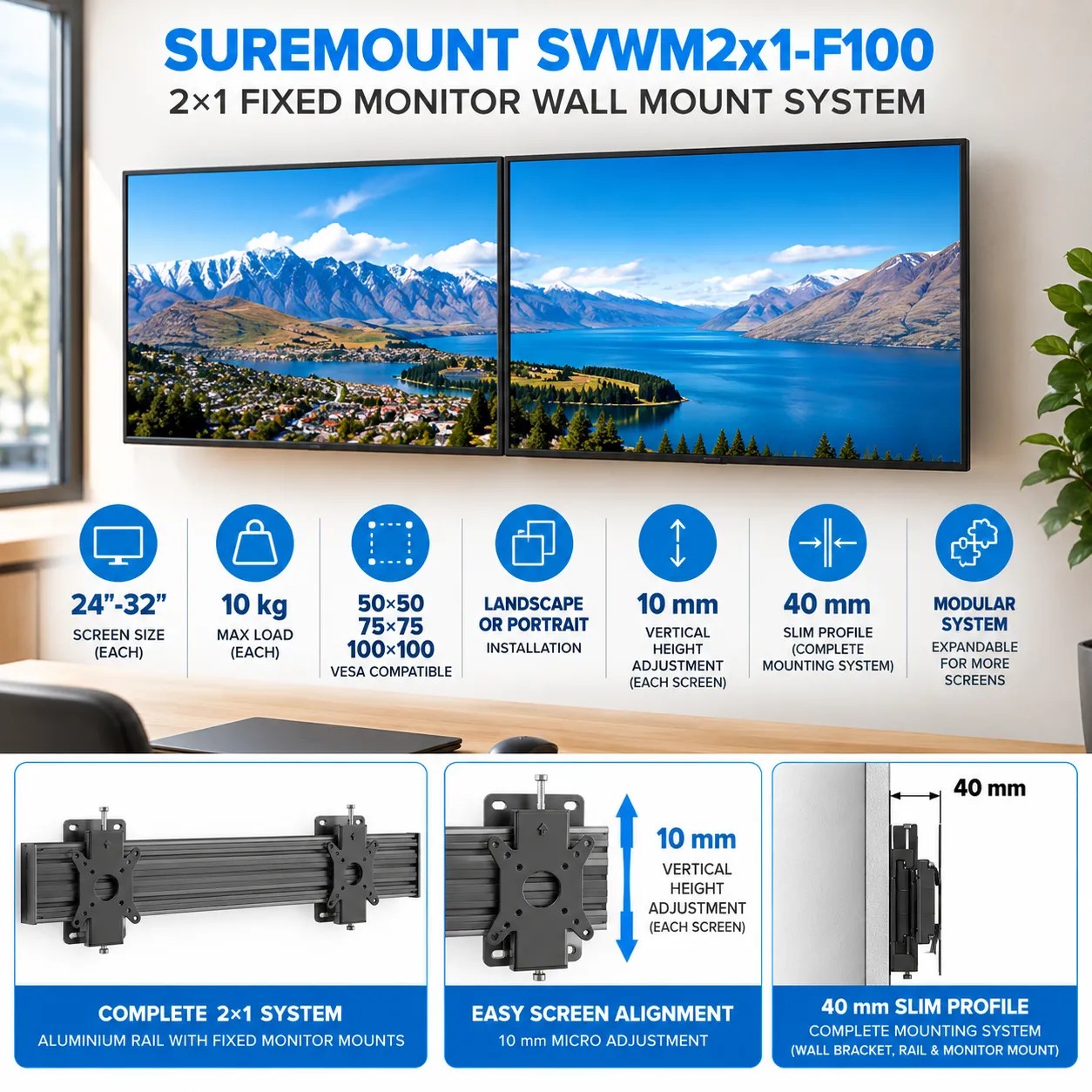

SureMount 2×1 Fixed Monitor Wall Mount System (SVWM2x1-F100)

The SureMount® SVWM2x1-F100 is a professional dual-monitor wall mounting system designed to mount two 24″–32″ screens side-by-side in either landscape or portrait orientation.

Built around SureMount’s modular aluminium rail system, the SVWM2x1-F100 provides a clean, strong and straightforward solution for control rooms, CCTV monitoring, office displays, digital signage, information screens and other multi-monitor installations.

Each monitor is supported by an individual SARFIX100 Fixed Monitor Mount, which clips directly onto the aluminium support rail. This makes it easy to position the monitors along the rail during installation and allows individual screens to be removed or repositioned without dismantling the complete mounting system.

Each SARFIX100 also provides 10 mm of vertical micro-adjustment, allowing installers to fine-tune the height of each screen and accurately align adjacent monitors.

With an overall rail width of 1010 mm and a slim 40 mm overall mounting depth, the SVWM2x1-F100 provides a compact professional mounting solution while retaining the flexibility to expand the rail system if additional screens are required in the future.

🟨 Key Features

🖥️ Designed for Two 24″–32″ Monitors
Mount two compatible monitors side-by-side on a single aluminium support rail.

↔️ Landscape or Portrait Installation
Suitable for two-screen configurations with the monitors installed in either landscape or portrait orientation.

🏋️ Maximum Load – 10 kg per Screen
Each SARFIX100 monitor mount supports a screen weighing up to 10 kg.

📐 VESA 50×50, 75×75 & 100×100 mm
Compatible with three common mounting patterns used on smaller monitors and commercial displays.

📏 10 mm Micro Height Adjustment
Each screen can be adjusted vertically by up to 10 mm, helping installers accurately align the top and bottom edges of adjacent monitors.

↔️ Independent Horizontal Screen Positioning
Each SARFIX100 can be positioned independently along the aluminium rail, allowing the spacing between the two monitors to be adjusted during installation.

🧩 Modular Aluminium Rail System
The monitors mount onto SureMount’s commercial aluminium rail system, providing a strong and flexible foundation for multi-screen installations.

🔧 Easy Screen Installation & Removal
The SARFIX100 mounts clip onto the rail, making individual monitors easier to install, remove or reposition without dismantling the complete system.

📺 Fixed Screen Position
A simple fixed mounting design provides a clean installation where tilt or forward/back adjustment isn’t required.

🎨 Black Powder-Coated Finish
Professional black finish keeps the mounting hardware discreet behind the monitors.

📐 Slim 40 mm Overall Depth
The complete mounting system projects approximately 40 mm from the wall, before allowing for the depth of the monitor itself.

➕ Expandable System
The modular aluminium rail system can be expanded using additional SureMount rails and components where more screens are required.

📐 Compatibility & Key Specifications

Configuration: 2 screens × 1 row
Recommended screen size: 24″–32″
Maximum load: 10 kg per screen
VESA: 50×50 / 75×75 / 100×100 mm
Screen orientation: Landscape or portrait
Vertical micro-adjustment: 10 mm
Overall system width: 1010 mm
Overall system height: 190 mm
Rail height: 120 mm
Overall depth: 40 mm
Finish: Black powder-coated
Mount type: Fixed
Installation: Wall mounted

🎯 Designed for Small Multi-Monitor Installations

The SVWM2x1-F100 is specifically designed for smaller monitors where a simple, fixed multi-screen installation is preferable to a larger and more complex video-wall mounting system.

It is particularly well suited to:

🎥 Security & CCTV Monitoring
Mount two surveillance displays together for a clean, dedicated monitoring station.

🖥️ Control Rooms
Keep operational or monitoring displays aligned on a common mounting rail.

📊 Office Dashboards
Display performance information, schedules, statistics or other live information across two screens.

🏢 Reception & Information Displays
Create a professional dual-screen information system without using individual wall mounts.

🛍️ Digital Signage
Run two adjacent promotional or information displays in either landscape or portrait orientation.

🍔 Menu & Information Boards
Create compact dual-screen menu or information displays.

🏭 Production Monitoring
Display production data, schedules or operational information across multiple monitors.

🔧 Installer’s Tip – Position the Screens Before Final Alignment

One of the advantages of the SureMount rail system is that the individual SARFIX100 monitor mounts can be repositioned horizontally along the aluminium rail.

During installation, position both monitors approximately where required before finalising their locations.

Once the horizontal spacing is correct, use the 10 mm vertical micro-adjustment on each SARFIX100 to fine-tune the individual screen heights.

This allows you to accurately align the top and bottom edges of adjacent screens, even where small differences exist between the monitors or their VESA mounting positions.

📏 10 mm Individual Height Adjustment

Even two identical monitors can require a small amount of adjustment to achieve accurate screen alignment.

Each SARFIX100 incorporates 10 mm of vertical micro-adjustment.

Using the adjustment at the top of the mount, installers can independently raise or lower each screen after it has been positioned on the rail.

This makes it much easier to create a clean, professional-looking two-screen installation without repeatedly removing and remounting the displays.

🧩 A Modular System That Can Grow

The SVWM2x1-F100 isn’t limited to its original two-screen configuration.

It forms part of the SureMount modular multi-screen mounting system, using aluminium rails, rail connectors, wall brackets and interchangeable screen mounts.

If your requirements change, additional SureMount components can be used to create a longer rail system and accommodate more screens.

This makes the SVWM2x1-F100 a useful starting point for installations that may need to expand in the future without replacing the complete mounting system.

For larger configurations, the number of rails, rail extensions and structural wall brackets required will depend on the number, size and weight of the screens.

📦 SVWM2x1-F100 Kit Includes

The complete SVWM2x1-F100 kit comprises:

1 × SAR1000
1000 mm aluminium support rail.

1 × SARENDCAP
End-cap set for neatly finishing the ends of the aluminium rail.

2 × SARWALLBKT
Wall brackets used to securely attach the aluminium rail to the wall.

2 × SARFIX100
Fixed monitor mounts – one for each screen.

📄 Technical Documents

SVWM2x1-F100 Measurements –SVWM2x1-F100-Measurements

Dimensions and mounting layout for the complete two-screen wall-mounted system.

SARFIX100 Technical Specification & Installation Instructions – SARFIX100 Tech Spec

Technical dimensions, VESA mounting positions, supplied hardware, installation instructions and 10 mm height adjustment for the individual SARFIX100 monitor mounts.

SVWM2x1-F100 Product Datasheet – SureMount_SVWM2x1-F100_Datasheet

🧠 Need More Screens Mounted?

Building a larger monitor wall with SureMount is straightforward using the modular component system.

If you need a customised multi-screen configuration, provide us with:

• What size screens do you have?
Ideally provide the screen model or VESA mounting pattern as well.

• How many screens do you need?
For example, 2×1, 3×1 or another multi-screen configuration.

• Will the screens be landscape or portrait?

• What does each screen weigh?

From this information we can determine the appropriate rail length, screen mounts, wall brackets and other components required for your installation.

Contact SureMount about your multi-screen installation

❓ FAQs – SVWM2x1-F100 Fixed Dual Monitor Wall Mount

1️⃣ What size monitors does the SVWM2x1-F100 support?

The SVWM2x1-F100 is designed for two 24″–32″ monitors, with each screen weighing no more than 10 kg.

2️⃣ What VESA mounting patterns does it support?

The supplied SARFIX100 fixed monitor mounts support VESA 50×50, 75×75 and 100×100 mm.

This makes the system compatible with a wide range of smaller monitors and commercial displays.

3️⃣ Can the monitors be installed in portrait orientation?

Yes.

Compatible monitors can be installed in either landscape or portrait orientation, making the system suitable for everything from CCTV monitoring to portrait digital signage.

4️⃣ Can I adjust the height of each monitor individually?

Yes.

Each SARFIX100 provides 10 mm of vertical micro-adjustment.

This allows each monitor to be independently raised or lowered slightly to accurately align adjacent screens.

5️⃣ Can I adjust the gap between the two monitors?

Yes.

The SARFIX100 mounts can be positioned horizontally along the aluminium rail.

This allows the spacing between the monitors to be adjusted during installation.

The available adjustment will depend on the physical width of your monitors and their VESA mounting positions.

6️⃣ Does the SVWM2x1-F100 allow the monitors to tilt?

No.

The SARFIX100 is a fixed monitor mount, designed for installations where the screens face directly forward.

If screen tilt is required, the SureMount SARTILT100 is the corresponding adjustable monitor mount and provides ±12° tilt as well as 10 mm height adjustment.

7️⃣ How far does the system project from the wall?

The supplied SVWM2x1-F100 dimensional drawing shows an overall mounting depth of approximately 40 mm.

The final distance to the front of the screen will depend on the depth of the monitor itself.

8️⃣ Can I add another monitor later?

Yes.

The SureMount multi-screen system is modular.

Additional aluminium rails and mounting components can be used to create larger multi-monitor installations.

The appropriate configuration will depend on the number, size and weight of the screens.

9️⃣ Can I remove one monitor without taking down the complete system?

Yes.

Each SARFIX100 attaches independently to the aluminium rail.

This means an individual screen can be removed for servicing or replacement without having to dismantle the complete rail system.

🔟 What comes with the SVWM2x1-F100?

The complete kit includes:

1 × SAR1000 aluminium rail
1 × SARENDCAP end-cap set
2 × SARWALLBKT wall brackets
2 × SARFIX100 fixed monitor mounts

1️⃣1️⃣ Is the SVWM2x1-F100 suitable for CCTV monitoring?

Yes.

Its compact fixed design, dual-screen layout and individual screen alignment make it particularly suitable for CCTV and security monitoring installations.

It is also well suited to control rooms, office dashboards and other applications where two smaller monitors need to be installed together.

1️⃣2️⃣ What is the advantage of mounting both screens on one rail?

Using a common aluminium rail makes it easier to position and align the two monitors relative to each other.

Rather than trying to accurately position two completely separate wall brackets, both screens share the same mounting structure.

The individual SARFIX100 mounts can then be moved horizontally along the rail and adjusted vertically by up to 10 mm to achieve the required final alignment.

1️⃣3️⃣ When should I choose a different SureMount multi-screen mount?

The SVWM2x1-F100 is best suited to smaller monitors where a simple fixed viewing position is required.

If you need tilt adjustment, larger screens, larger VESA patterns or more extensive screen alignment, another SureMount multi-screen mounting option may be more appropriate.

For example, the SARTILT100 provides tilt adjustment for smaller monitors, while SureMount’s larger video-wall mounting arms are designed for larger displays and VESA patterns.
