55″–100″ Landscape & Portrait Full Motion TV Wall Mount (SCLART12XL)

SureMount 55″–100″ Landscape & Portrait Full Motion TV Wall Mount (SCLART12XL)

The SureMount SCLART12XL Landscape & Portrait Full Motion TV Wall Mount is a premium heavy-duty bracket designed for large televisions and commercial displays where maximum flexibility is essential.

Unlike conventional articulating TV mounts, the SCLART12XL allows your screen to rotate effortlessly between landscape and portrait orientation while also providing full extension, swivel and tilt adjustment. This unique capability makes it ideal for digital signage, restaurants, retail stores, reception areas, conference rooms, gyms, education facilities and modern home installations where portrait content is becoming increasingly popular.

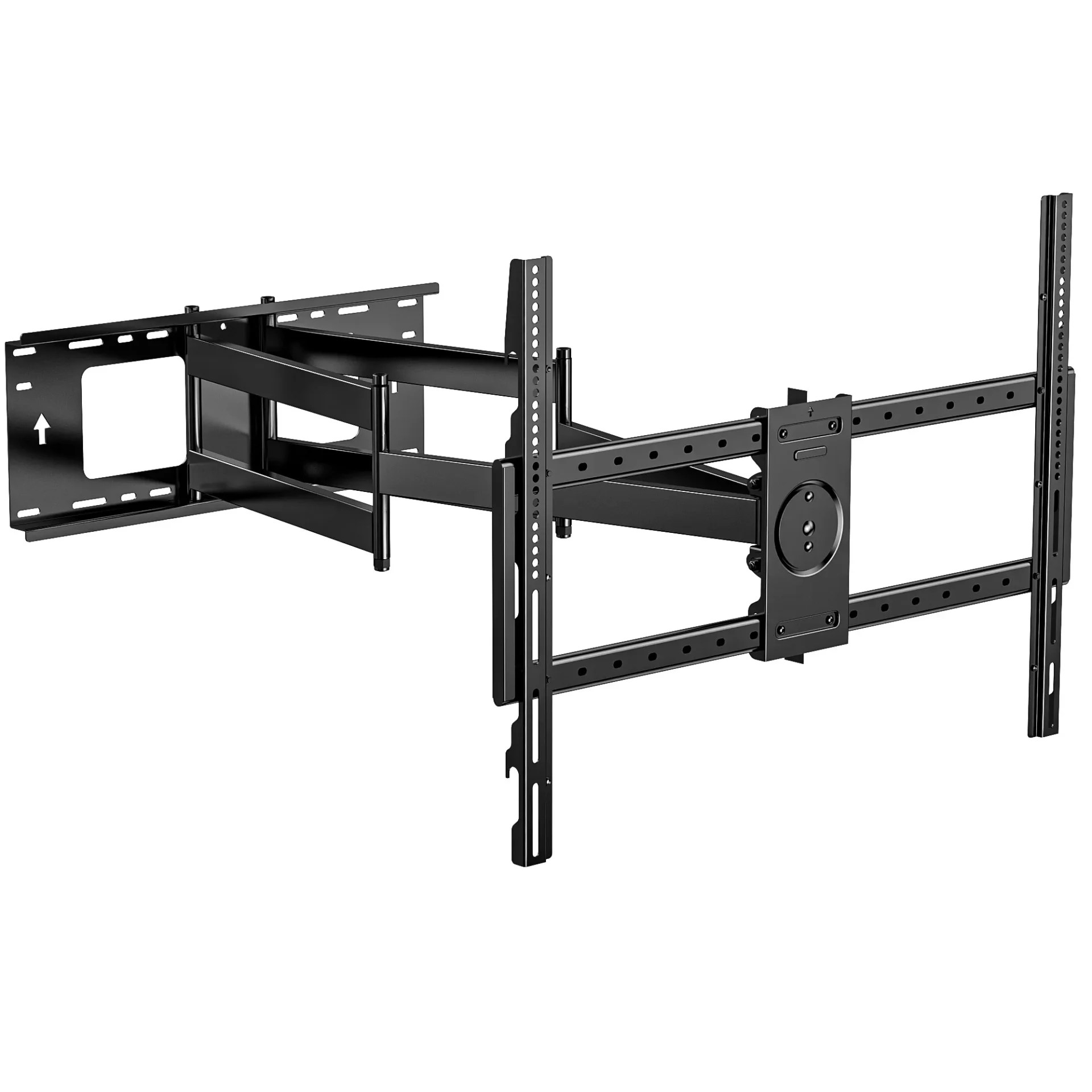

Its heavy-duty dual arm design provides exceptional strength and stability while supporting televisions from 55″–100″ weighing up to 80kg. The smooth articulating mechanism extends over one metre from the wall, allowing the screen to be positioned exactly where it’s needed before rotating into either landscape or portrait orientation.

With +5° to -12° tilt, ±60° swivel, ±94° screen rotation, ±3° post-installation levelling, integrated cable management and heavy-gauge steel construction, the SCLART12XL combines professional performance with everyday usability.

Whether you’re displaying digital menus, advertising, information boards, artwork, social media feeds or simply want the ultimate flexibility for your entertainment system, the SCLART12XL offers a level of versatility that very few articulating TV wall mounts can match. While portrait-capable TV mounts are available from a small number of manufacturers, they remain relatively uncommon compared with standard full-motion mounts, making this a distinctive option in the Australasian market.

---

✔ Key Features

📺 Fits most **55″–100″ TVs

🔄 Easily rotates between Landscape & Portrait orientation

🖥️ Perfect for digital signage, retail displays, restaurants, offices and home entertainment

💪 Heavy-duty dual arm design for superior strength and stability

📏 Extends up to 1067mm from the wall

⬜ Supports VESA 200×100mm up to 800×600mm

⚖️ Maximum weight capacity: 80kg

📐 Tilt adjustment from +5° to -12°

↔️ Swivel adjustment up to ±60°

🔁 Screen rotation ±94° for landscape and portrait viewing

🎯 ±3° post-installation levelling adjustment

🔌 Integrated cable management system

🛡️ Heavy-gauge steel construction for long-term durability

🔩 Includes full mounting kit for timber stud, brick and concrete installation

---

📄 Technical Documents

📐 55″–100″ Landscape & Portrait Full Motion TV Wall Mount (SCLART12XL) Dimensions & Measurements – SCLART12XL Measurements

Wall Plate: 660 × 256mm

Maximum TV Mounting Hole Pattern: 875 × 630mm

Maximum Extension: 1067mm

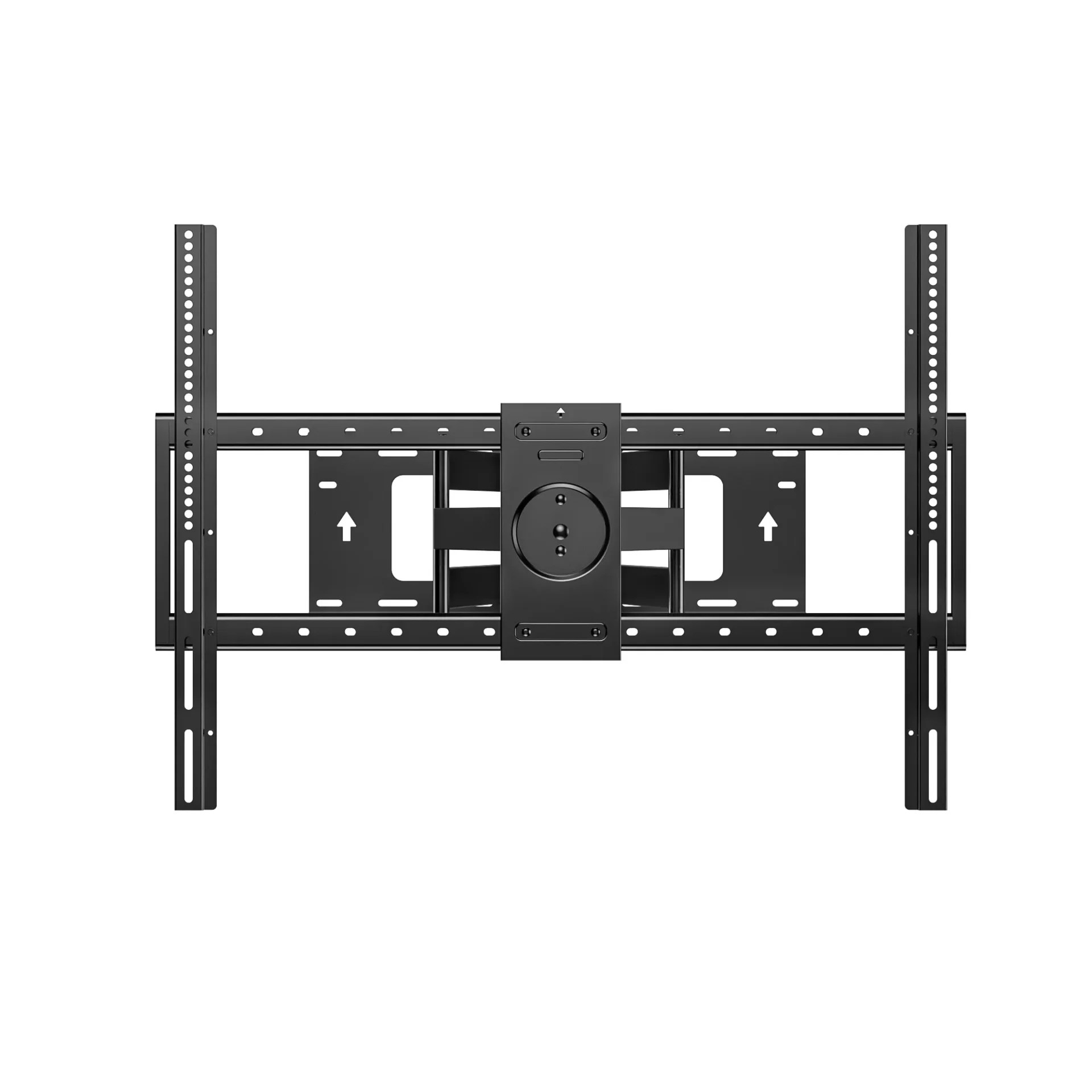

Minimum Wall Distance: 95mm

Tilt: +5° to -12°

Swivel: ±60°

Screen Rotation: ±94°

Post-installation Levelling: ±3°

---

📘 55″–100″ Landscape & Portrait Full Motion TV Wall Mount (SCLART12XL) Installation & User Manual – SureMount-SCLART12XL-Installation-Instructions

---

🔄 SCL10XL vs SCLART12XL – Which One Should You Choose?

Both the SCL10XL and SCLART12XL are premium dual arm full motion TV wall mounts designed for larger televisions. The difference comes down to whether you need the ability to rotate your screen between landscape and portrait orientation.

---

📺 SCL10XL – Stable Everyday Full Motion

✔ Best for: Living rooms, family rooms and general home entertainment

✔ Maximum extension: 910mm

✔ Smooth extend, tilt and swivel movement

✔ Excellent strength and stability for larger TVs

✔ Ideal when:

• Your TV will always remain in landscape orientation

• You want smooth everyday adjustment

• You prefer a simpler full motion solution

---

📺 SCLART12XL – Maximum Flexibility

✔ Best for: Digital signage, commercial installations and multi-purpose viewing

✔ Maximum extension: 1067mm

✔ Full motion with Landscape & Portrait rotation

✔ Supports larger TVs up to 80kg

✔ Ideal when:

• You need to display portrait content

• Your screen is used for menus, advertising or information displays

• You want the ultimate flexibility for both commercial and residential use

---

⭐ Quick Summary

👉 Choose the SCL10XL for a premium dual arm full motion mount for everyday TV viewing.

👉 Choose the SCLART12XL if you want everything the SCL10XL offers plus the ability to rotate your TV between landscape and portrait orientation.

---

🔧 Installer’s Insight

The ability to rotate a large television between landscape and portrait orientation opens up applications that standard full motion mounts simply can’t achieve.

For commercial installations, this makes the SCLART12XL ideal for digital menus, advertising displays, reception screens and information boards. For home users, it provides the flexibility to display artwork, social media feeds or portrait photography before returning the TV to landscape mode for everyday viewing.

Combined with its heavy-duty dual arm construction and over one metre of extension, the SCLART12XL is one of the most versatile TV wall mounts in the SureMount range.

---

❓ FAQs – 55″–100″ Landscape & Portrait Full Motion TV Wall Mount (SCLART12XL)

1️⃣ What TV sizes does this mount support?

The SCLART12XL is designed for most 55″–100″ TVs, with a maximum weight capacity of 80kg.

---

2️⃣ Can I rotate my TV into portrait mode?

Yes.

The SCLART12XL allows the screen to rotate between landscape and portrait orientation, making it ideal for digital signage, advertising displays, menus and portrait content.

---

3️⃣ What makes this different from a standard full motion TV mount?

Unlike conventional articulating mounts, the SCLART12XL combines extension, swivel and tilt with screen rotation, allowing the TV to be viewed in either landscape or portrait orientation.

---

4️⃣ How far does the TV extend from the wall?

The mount extends up to 1067mm from the wall while folding back to just 95mm when not in use.

---

5️⃣ Can I level the TV after installation?

Yes.

The mount features ±3° post-installation levelling adjustment, allowing you to fine-tune the screen after it has been mounted.

---

6️⃣ Is this mount suitable for commercial installations?

Absolutely.

The SCLART12XL is ideal for restaurants, retail stores, offices, schools, conference rooms, reception areas, gyms and digital signage where portrait content or flexible viewing angles are required.

---

7️⃣ Does it include everything needed for installation?

Yes.

The mount includes a complete mounting kit suitable for timber stud, brick and concrete installations, along with all required TV mounting hardware.

---

8️⃣ Will it still work as a normal TV wall mount?

Yes.

The SCLART12XL functions as a premium full motion TV mount with extension, swivel and tilt adjustment, while also giving you the added flexibility of portrait rotation whenever required.
