55″–100″ Tilting TV Wall Mount (SAFT03)

SureMount 55″–100″ Tilting TV Wall Mount (SAFT03)

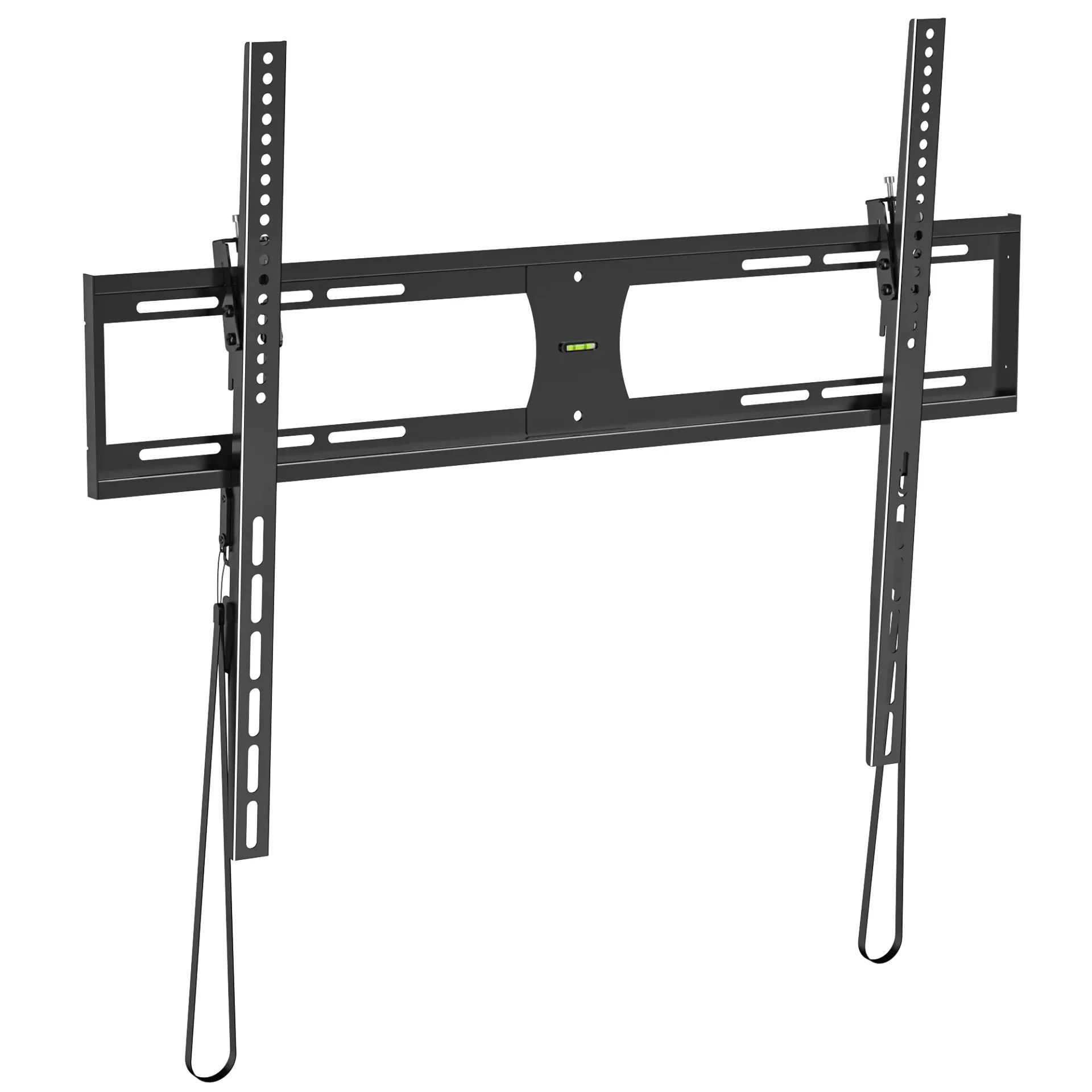

The SureMount SAFT03 Tilting TV Wall Mount is a heavy-duty, low-profile bracket designed for extra-large televisions, providing a secure installation with professional adjustment features.

Ideal for home theatres, living rooms and commercial installations, the SAFT03 features an extra-wide 853mm backplate that easily spans two standard wall studs while allowing the vertical mounting rails to slide along the backplate. This makes it simple to perfectly centre the TV regardless of stud position.

Unlike many standard TV wall mounts, the SAFT03 features post-installation micro levelling adjustment. Once the TV has been hung, adjustment screws allow the screen to be fine-tuned by ±2° to achieve perfect alignment without having to remove or reinstall the television.

Combined with the 0° to -5° tilt adjustment, built-in spirit level, quick-release pull cords and 34mm low-profile design, the SAFT03 delivers the professional installation features normally found on higher-end commercial mounting systems.

---

✔ Key Features

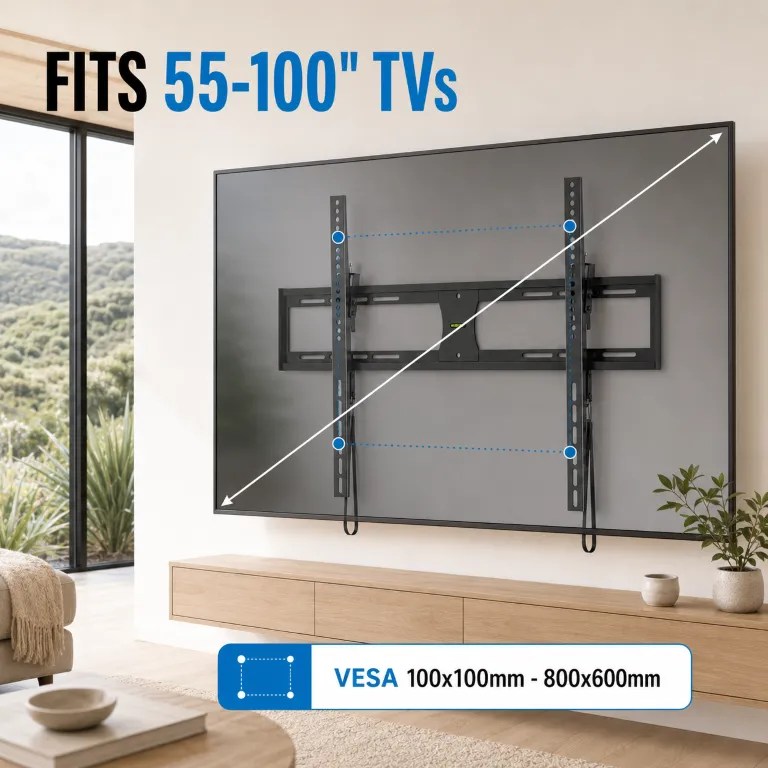

📺 Fits most 55″–100″ TVs

⬜ Supports VESA 100×100mm up to 800×600mm

⚖️ Maximum weight capacity: 65kg

📏 Extra-wide 853mm backplate for easy two-stud installation and improved TV centring

🔌 Ultra-slim 34mm profile for a clean, low-profile finish

📐 Adjustable 0° to -5° tilt for improved viewing angle and reduced glare

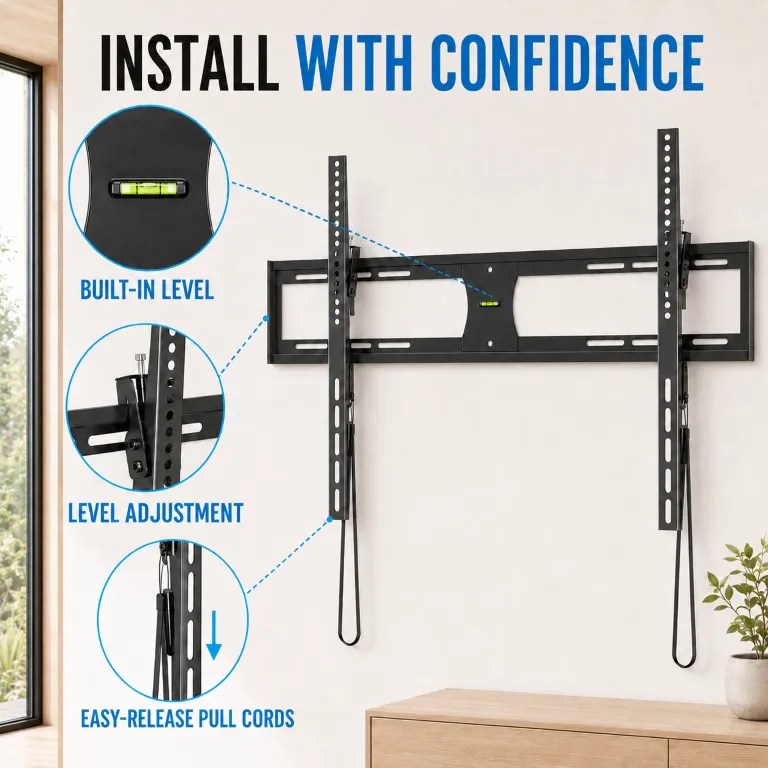

📍 Built-in spirit level for easier installation

🎯 ±2° post-installation levelling for perfect TV alignment

🔓 Quick-release pull cords for fast TV removal and cable access

🧱 Suitable for timber stud, concrete and brick wall installation

🛡️ Heavy-duty steel construction for durability

🔩 Includes full mounting kit for wall and TV installation

---

📄 Technical Documents

📐 SAFT03 Dimensions & Measurements – SAFT03 Measurements

📘 SAFT03 Installation & User Manual – SureMount SAFT03 Installation Manual

---

🔧 Installer’s Tip — Making the Most of the Extra-Wide Backplate

One of the biggest advantages of the SAFT03 is its 853mm extra-wide wall plate.

Professional installers typically secure the wall plate across two timber studs, then position the vertical TV rails along the backplate to perfectly centre the television.

This provides three major benefits:

• Stronger installation:
The load is shared across two wall studs for maximum strength.

• Easy TV centring:
The sliding mounting rails allow the TV to be positioned exactly where you want it, even if the wall studs don’t line up with the centre of the room.

• Faster installation:
There’s less need to compromise on TV position or install additional timber nogs, making installation quicker and easier.

This is one of the major advantages of the SAFT03 over narrower wall mounts.

❓ FAQs – 55″–100″ Tilting TV Wall Mount (SAFT03)

1️⃣ What TV sizes does this mount support?

The SAFT03 is designed for most 55″–100″ TVs, with a maximum weight capacity of 65kg.

---

2️⃣ What VESA mounting patterns are supported?

The mount supports VESA patterns from 100×100mm up to 800×600mm, making it compatible with a wide range of large televisions.

---

3️⃣ How close to the wall does the TV sit?

The ultra-slim design positions the TV just 34mm from the wall, providing a neat, low-profile appearance while still allowing space for cables.

---

4️⃣ Can I tilt the TV after installation?

Yes.

The SAFT03 provides 0° to -5° tilt adjustment, allowing you to reduce glare and improve viewing angles, particularly when the TV is mounted above eye level.

---

5️⃣ What is the advantage of the extra-wide backplate?

The 853mm backplate is designed to span two standard timber wall studs while allowing the TV mounting rails to slide along the backplate.

This makes it much easier to centre the TV exactly where you want it without being restricted by stud locations.

---

6️⃣ Can I level the TV after it has been mounted?

Yes.

The SAFT03 features ±2° post-installation levelling adjustment, allowing you to fine-tune the TV’s position after installation for a perfectly level finish.

---

7️⃣ What are the quick-release pull cords for?

The pull cords allow the TV to be quickly released from the wall plate, making it easy to access cables or remove the television for maintenance without uninstalling the entire bracket.

---

8️⃣ Is this mount suitable for standard wall studs?

Yes.

The extra-wide wall plate is specifically designed to mount securely across two standard timber wall studs, while also being suitable for concrete and brick wall installations using the supplied hardware.

---

9️⃣ Does the SAFT03 include everything needed for installation?

Yes.

The mount includes a complete mounting kit with wall fixings, TV mounting hardware and installation instructions for most installations.

---

🔟 Should I choose a fixed or tilt mount?

A tilt mount like the SAFT03 is ideal if your TV will be mounted above eye level or where reducing glare is important.

If your television will be installed at the ideal viewing height and you prefer the slimmest possible installation, a fixed wall mount may be a better choice.
