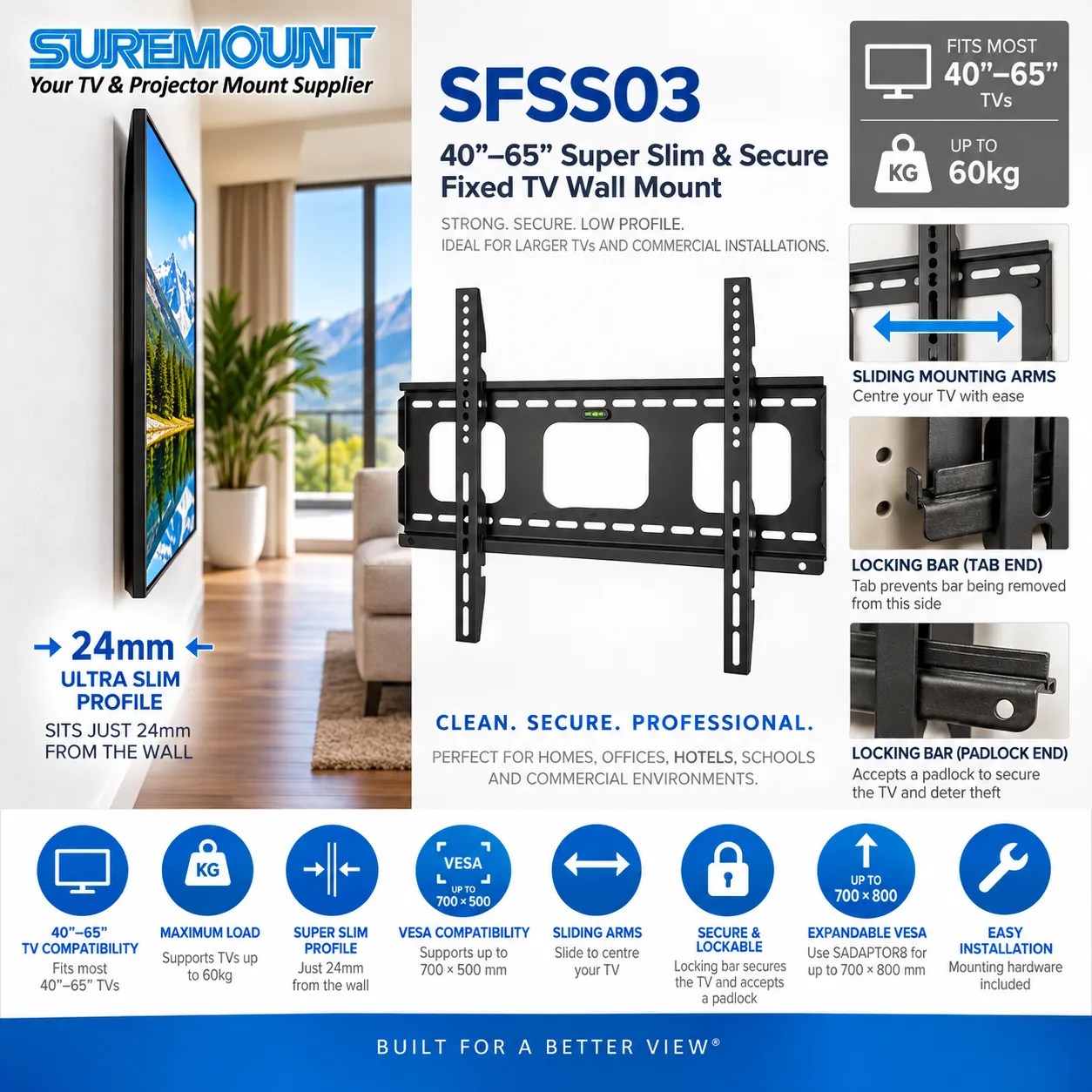

40″–65″ Super Slim Fixed TV Wall Mount (SFSS03)

SureMount 40″–65″ Super Slim Fixed TV Wall Mount (SFSS03)

The SureMount SFSS03 is a super slim fixed TV wall mount designed to position your TV as close to the wall as possible, creating a clean, modern, low-profile finish.

With a mounting depth of just 24mm, it delivers a near flush appearance — ideal for contemporary living spaces, bedrooms, and commercial environments where a streamlined look is essential.

Designed for larger VESA patterns, it also features sliding mounting arms, allowing for easy centring of the TV on the wall.

---

🟨 Key Features

📺 Fits Most 40″–65″ TVs

📐 VESA Compatibility: Up to 700×500
Expandable to 700×800 with extension arms

📏 Ultra Slim Profile – 24mm from Wall
Creates a sleek, near flush finish.

🔄 Sliding Mounting Arms
Allows easy centring of the TV after installation.

🧱 Fixed Mount Design
No movement — maximum stability.

🛠 Steel Construction
Strong and durable.

🔧 Simple Installation Design
Quick and easy to install.

📦 Full Mounting Kit Included

---

⚠️ Compatibility Note

• Recommended TV size: 40″–65″
• VESA: Up to 700×500
• Extended VESA: Up to 700×800 (with extension arms)

👉 Fixed position mount (no tilt or swivel)
👉 Designed for ultra-slim, flush wall installations

---

📄 Technical Documents

SFSS03 Measurements: SFSS03-Measurements

SFSS03 Manual: SFSS01 SFSS03 SFSS05 Manual

SFSS03 Datasheet: SureMount_SFSS03_Datasheet

---

🔧 Installer’s Tip — Improve Viewing Angle and Cable Access

Professional installers often add a small spacer or washer behind the top mounting holes (on the TV side of the bracket).

This creates a very slight forward tilt — usually only a few degrees — but it has several advantages:

• Better viewing angle
If the TV is mounted slightly higher than eye level, this gentle forward angle improves visibility and reduces glare.

• Better cable access & connector protection
With a 24mm ultra-slim gap, some TVs with rear-facing ports can sit tight against the wall.
A slight tilt provides:
– extra room for cables
– less strain on HDMI and power connectors
– easier installation and future access

• Cleaner overall finish
Reduces pressure on cables and helps the TV sit naturally and level.

👉 This is a standard, safe, and widely used installer technique, especially important with ultra-slim mounts.

---

🔁 Expand Compatibility (Portrait & Large Format Screens)

This mount can be expanded using the SADAPTOR8 Vertical VESA Extension Bars.

👉 Allows extension up to 700×800 VESA
👉 Ideal for portrait installations or taller displays

---

❓ FAQs – 40″-65″ Super Slim Fixed TV Wall Mount (SFSS03)

1️⃣ Will this work with my TV?

Check:

• Your TV is 40″–65″
• VESA up to 700×500 (or 700×800 with extensions)

---

2️⃣ How close does the TV sit to the wall?

The mount sits just 24mm from the wall, creating a near flush finish.

---

3️⃣ What are the sliding arms for?

They allow you to centre the TV perfectly on the wall, even after mounting.

---

4️⃣ Can I tilt or swivel the TV?

No.
This is a fixed mount designed for a clean, low-profile installation.

---

5️⃣ Will cables fit behind the TV?

Most will, but for ultra-slim installs:

• Angled connectors or
• A slight spacer tilt

can improve clearance.

---

6️⃣ Can this support portrait screens?

Yes — with an adaptor.
Using the SADAPTOR8, the mount can support portrait-oriented TVs up to 700×800 VESA.
