40″–100″ Large TV Ceiling Mount – 1550mm Drop (SMCM80XL)

SureMount 40″–100″ Heavy-Duty Adjustable TV Ceiling Mount – 1550mm Drop (SMCM80XL)

The SureMount® SMCM80XL Heavy-Duty TV Ceiling Mount is a professional, modular mounting solution designed for large and extra-large TVs from 40″–100″, supporting screens weighing up to an impressive 135 kg.

Built around SureMount’s 50 mm modular pole system, the SMCM80XL provides significantly more installation flexibility than a conventional fixed ceiling mount. The screen height can be adjusted during installation using the sliding pole clamp, while additional pole sections can be added when a longer drop is required.

The standard configuration provides an adjustable drop from approximately 580–1550 mm, with the ability to extend the system further using optional 800 mm SMCM80XL-EXT800 extension poles.

One of the standout features of the SMCM80XL is its highly adjustable mounting plate. The plate can articulate through to 90°, allowing the mount to be installed on a standard horizontal ceilings, an angled or sloping ceiling, or even a vertical wall, while allowing the pole to hang vertically.

At the screen, five positive locking tilt positions provide controlled adjustment at +15°, +10°, +5°, 0° and -6°, allowing the viewing angle to be selected and securely locked in place.

Supporting VESA mounting patterns from 100×100 up to 900×600 mm, the SMCM80XL is ideal for large-screen residential installations, commercial displays, hospitality environments, retail spaces, conference facilities and other professional installations where strength, adjustability and installation flexibility are important.

---

🟨 Key Features

📺 40″–100″ TV Compatibility
Designed for large and extra-large TVs from approximately 40″ through to 100″, subject to screen weight and VESA compatibility.

⚖️ Heavy-Duty 135 kg Capacity
Supports TVs weighing up to 135 kg, making the SMCM80XL suitable for considerably heavier commercial and large-format displays.

📐 VESA 100×100 to 900×600 mm
Wide VESA compatibility accommodates a broad range of screen sizes and mounting-hole configurations.

↕️ 580–1550 mm Adjustable Drop
The standard pole configuration provides extensive height adjustment to suit different ceiling heights and viewing requirements.

🔧 50 mm Modular Pole System
Built around SureMount’s Ø50 mm pole system, allowing the installation to be configured and expanded using compatible components.

➕ Extendable in 800 mm Increments
Need the TV lower? Add optional SMCM80XL-EXT800 800 mm extension poles to increase the overall drop.

🎯 Fine Height Adjustment
The TV mounting assembly clamps around the pole rather than being restricted to a single fixed mounting point. This allows the installer to slide the assembly along the pole before securing it at the required height.

📐 Five Preset Screen Tilt Positions
Choose between +15°, +10°, +5°, 0° and -6°. Defined locking positions provide a secure and repeatable viewing angle.

🏠 Ceiling, Sloping Ceiling or Wall Installation
The adjustable mounting plate can articulate through to 90°, allowing installation on a horizontal ceiling, angled ceiling or even a vertical wall while the pole hangs vertically.

🔌 Integrated Cable Management
Cables can be routed through the pole for a clean, professional installation.

🛠️ Heavy-Duty Construction
Designed for demanding large-screen residential and commercial installations.

---

🔧 Modular 50 mm Pole System

The SMCM80XL forms part of SureMount’s modular 50 mm pole mounting system.

Rather than the screen mount being permanently fixed to a predetermined position on the pole, the mounting assembly uses an adjustable pole clamp. During installation, the assembly can be moved along the pole and secured at the desired position.

This provides two levels of height adjustment:

Coarse adjustment is achieved by selecting the appropriate pole configuration and adding optional 800 mm extension sections where required.

Fine adjustment is achieved by moving the screen mounting assembly along the 50 mm pole before locking the clamp into position.

This makes it much easier for an installer to achieve the required finished screen height without having to manufacture or cut a pole to an exact length.

---

🏠 Mount From a Ceiling, Sloping Ceiling or Wall

A major advantage of the SMCM80XL is the versatility of its adjustable mounting plate.

The plate can articulate through to 90°, allowing the pole to remain vertical when attached to a variety of mounting surfaces.

This means the SMCM80XL can be installed on:

• Standard horizontal ceilings
• Pitched or sloping ceilings
• Angled structural surfaces
• Vertical walls

The wall-mounting option is particularly useful where the TV needs to hang down alongside a wall but fixing directly into the ceiling isn’t practical.

As with any heavy-duty installation, the mounting surface and fixings must be suitable for the combined weight of the mount and TV.

---

📐 Five Preset Screen Tilt Positions

Rather than relying on a continuously adjustable friction joint, the SMCM80XL provides five defined tilt positions:

+15° | +10° | +5° | 0° | -6°

This allows the installer to select the most appropriate screen angle and positively secure it in position.

The multiple downward and upward viewing positions are particularly useful when the TV is mounted significantly above normal eye level.

---

📏 Key Specifications

Recommended TV Size: 40″–100″
Maximum Load: 135 kg
VESA Compatibility: 100×100 to 900×600 mm
Standard Adjustable Drop: Approx. 580–1550 mm
Pole Diameter: Ø50 mm
Extension Pole Length: 800 mm
Screen Tilt Positions: +15° / +10° / +5° / 0° / -6°
Mounting Plate Adjustment: Up to 90°
Mounting Options: Ceiling / sloping ceiling / vertical wall
Horizontal Rail Width: 1010 mm
Vertical TV Rails: 600 mm
Cable Management: Through-pole cable routing
Construction: Heavy-duty steel

---

🏢 Ideal Applications

Commercial & Corporate Environments
Ideal for large displays in boardrooms, conference facilities, reception areas and open commercial spaces.

Hospitality
Suitable for bars, restaurants, hotels and entertainment venues where screens need to be suspended above normal viewing height.

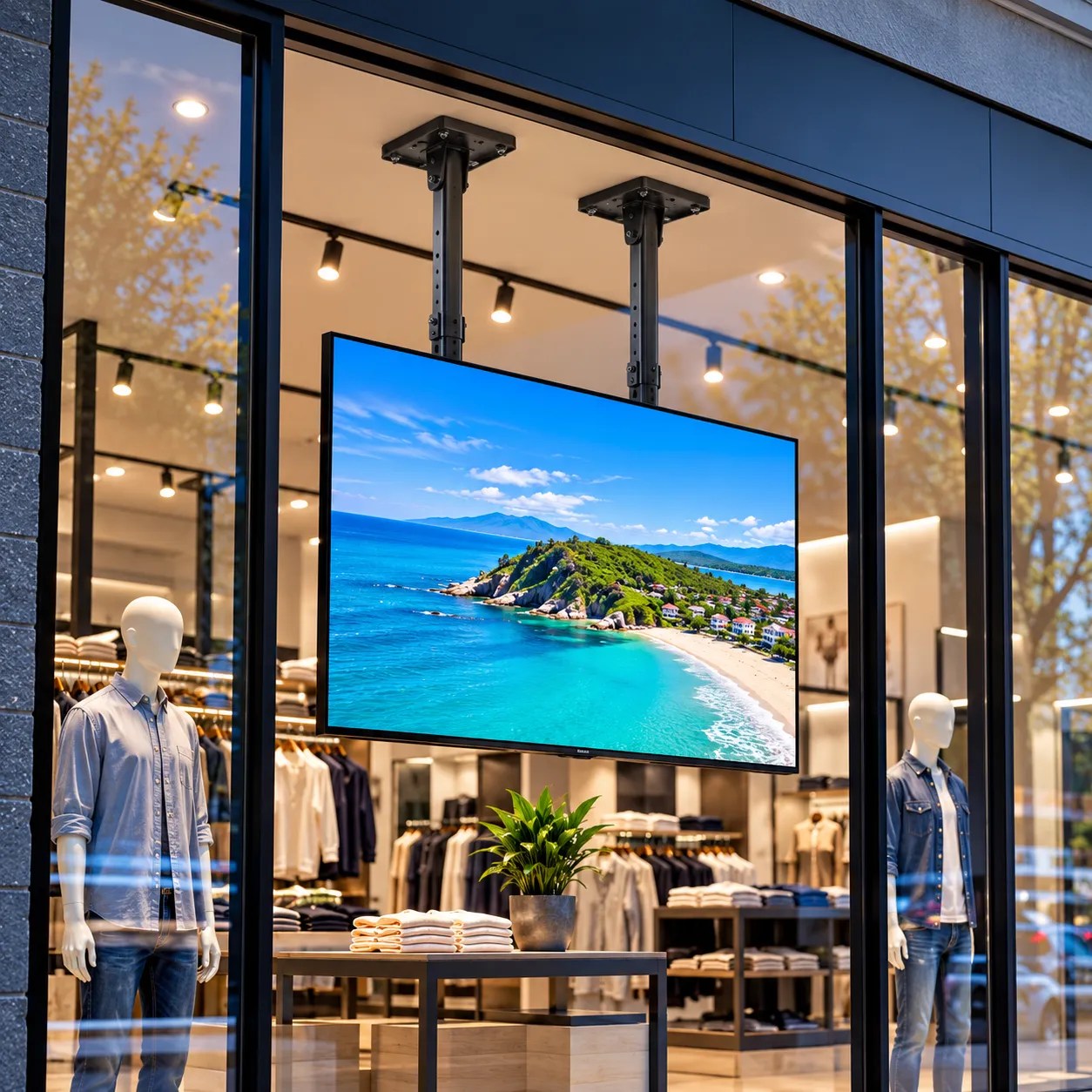

Retail & Digital Signage
Provides a professional solution for large promotional and information displays.

High or Sloping Ceilings
The adjustable mounting plate and modular pole system make the SMCM80XL particularly useful for unusual architectural spaces.

Wall-Suspended Installations
The 90° mounting plate adjustment provides an alternative where a vertical wall is available but direct ceiling fixing is unsuitable.

Large Residential Installations
Suitable for large TVs where a conventional wall mount isn’t practical or where the TV needs to be suspended within an open-plan space.

---

➕ Need a Longer Drop?

The standard SMCM80XL configuration provides an adjustable drop of approximately 580–1550 mm.

For installations requiring a longer drop, the system can be extended using:

SMCM80XL-EXT800 – 800 mm Extension Pole

Additional extension sections allow the system to be configured for significantly higher ceilings while retaining the advantages of the modular 50 mm pole system.

---

⚠️ SMCM80XL vs SMCM300L

Although both products are SureMount heavy-duty ceiling mounts, they use different pole systems and components and are not interchangeable.

Choose the SMCM80XL when:

You need precise installation height adjustment, a modular system, unusual ceiling/wall mounting, or the ability to modify or expand the installation later.

Choose the SMCM300L when:

You need a straightforward long-drop ceiling mount for a single TV, particularly where the required drop approaches or exceeds 3 metres.

Important: Components from the SMCM80XL 50 mm system and SMCM300L 42 mm system cannot be mixed.

---

📄 Technical Documents

Installation Instructions – SMCM80XL
SMCM80XL manual

Product Measurements – SMCM80XL
SMCM80XL Measurements

Datasheet – SMCM80XL
SureMount_SMCM80XL_Datasheet

---

❓ FAQs – SureMount SMCM80XL Heavy-Duty TV Ceiling Mount

1️⃣ How do I know whether the SMCM80XL will fit my TV?

There are three main things to check:

Screen size: The recommended range is 40″–100″.

Weight: The TV must weigh 135 kg or less.

VESA: The mounting-hole pattern must fall between 100×100 and 900×600 mm.

Weight and VESA compatibility should always be checked rather than relying on TV screen size alone.

---

2️⃣ What is the standard drop of the SMCM80XL?

The standard configuration provides an adjustable drop of approximately 580–1550 mm.

The exact screen position can then be fine-tuned by adjusting the position of the mounting clamp on the pole.

---

3️⃣ Can I extend the mount lower than 1550 mm?

Yes.

Optional SMCM80XL-EXT800 800 mm extension poles can be added to increase the overall drop.

This modular approach makes the system suitable for installations with significantly higher ceilings.

---

4️⃣ How is the TV height adjusted?

There are two stages of adjustment.

The pole configuration provides the main or coarse height adjustment. Optional 800 mm extension poles can be added where additional drop is required.

The fine adjustment is then achieved by sliding the TV mounting assembly along the 50 mm pole and securing the pole clamp at the desired position.

---

5️⃣ Can the SMCM80XL be installed on a sloping ceiling?

Yes.

The adjustable mounting plate can pivot through to 90°, making it suitable for horizontal, angled and steeply sloping mounting surfaces.

---

6️⃣ Can the SMCM80XL actually be mounted to a wall?

Yes.

Because the mounting plate can adjust through to 90°, it can be fixed to a suitable vertical wall, allowing the 50 mm pole and TV to hang vertically down alongside the wall.

This can be extremely useful where ceiling fixing isn’t practical.

The wall structure and mounting hardware must, of course, be capable of supporting the combined weight of the mount and TV.

---

7️⃣ How much can I tilt the TV?

The SMCM80XL provides five preset tilt positions:

+15°, +10°, +5°, 0° and -6°

These are defined locking positions rather than a continuously variable tilt mechanism.

---

8️⃣ Why use preset tilt positions?

The preset positions allow the screen angle to be positively secured and easily repeated, which is particularly useful with large and heavy TVs.

It also allows the installer to select the viewing angle that best suits the height and location of the screen.

---

9️⃣ Does the SMCM80XL have cable management?

Yes.

TV and AV cables can be routed through the pole to help create a clean, professional installation without cables hanging externally alongside the mount.

---

🔟 Is the SMCM80XL compatible with the SMCM300L?

No.

The two products use different pole systems.

The SMCM80XL uses a 50 mm pole and adjustable clamp system, while the SMCM300L uses a 42 mm pole with a fixed/bolted mounting arrangement.

Components from the two systems should not be mixed.

---

1️⃣1️⃣ Is the SMCM80XL part of the SureMount modular mounting system?

Yes.

The SMCM80XL uses SureMount’s 50 mm modular pole system, allowing it to integrate with compatible mounting components and be adapted for more specialised installations.

This makes it particularly suitable for professional and commercial installations where a system may need to be modified or expanded in the future.

---

1️⃣2️⃣ What is the maximum weight capacity?

The SMCM80XL is rated for a maximum screen weight of 135 kg.

Because this is a heavy-duty ceiling/wall-suspended product, the supporting structure and installation hardware must also be capable of safely carrying the complete installed load.
