32″–80″ Double Sided Ceiling Mount – 3000mm Drop (SMCM300D)

SureMount 32″–80″ Double Sided Ceiling Mount – 3000mm Drop (SMCM300D)

The SureMount SMCM300D Double Sided Ceiling Mount is a heavy-duty solution designed to mount two TVs back-to-back from the ceiling.

Based on the SMCM300L system, this mount uses a 42mm pole with a fixed bolt-on mounting head, providing a strong and stable installation for double-sided viewing. It is ideal for environments where screens need to be visible from both directions, such as retail spaces, shopfront windows, gyms, and commercial environments.

A key advantage of the SMCM300D is the ability to rotate both screens between landscape and portrait orientation without needing to remove or remount the TVs. This makes it ideal for digital signage, menu boards, and installations where display orientation may change over time.

With a drop from 860mm to 3130mm, +15° to -5° tilt, and 30° swivel left and right, the SMCM300D is well suited for high ceilings and open spaces, delivering a clean, professional ceiling-mounted display solution. Additional SMCM300L-EXT1500 extension poles can be added to make a maximum drop of 6 metres.

---

🟨 Key Features

🔄 Tool-Free Screen Rotation (Landscape ↔ Portrait)
Rotate both screens without removing or remounting — ideal for digital signage and menu boards.

📺 Double-Sided Display
Mount two TVs back-to-back for visibility from both directions.

🏋️ Heavy Duty Design – 75kg Capacity
Built for commercial environments with strong, stable support.

📏 Fits Most 32″–80″ TVs
Compatible with a wide range of screen sizes and VESA patterns.

🧱 42mm Pole System (SMCM300 Series)
Fixed bolt-on mounting head for a secure, professional install.

📐 Adjustable Drop: 860–3130mm
Modular pole system allows flexible height adjustment.

🔧 Tilt & Swivel Adjustment
+15° to -5° tilt and 30° swivel left/right for optimal viewing angles.

➕ Extendable Up to 6 Metres
Add SMCM300L-EXT1500 poles for extra drop on high ceilings.

🏠 Flat & Sloped Ceiling Compatible
Suitable for ceiling angles up to 90°.

🛠 Strong Steel Construction
Durable, commercial-grade build quality.

📦 Complete Mounting Kit Included
Everything required for ceiling and TV installation.

---

⚠️ Compatibility Note

This mount uses the 42mm pole system and is NOT compatible with:

• SMCM80XL (50mm pole system)
• SFC1B1 floor-to-ceiling systems

---

📄 Technical Documents

Product Manual: SMCM300D Manual

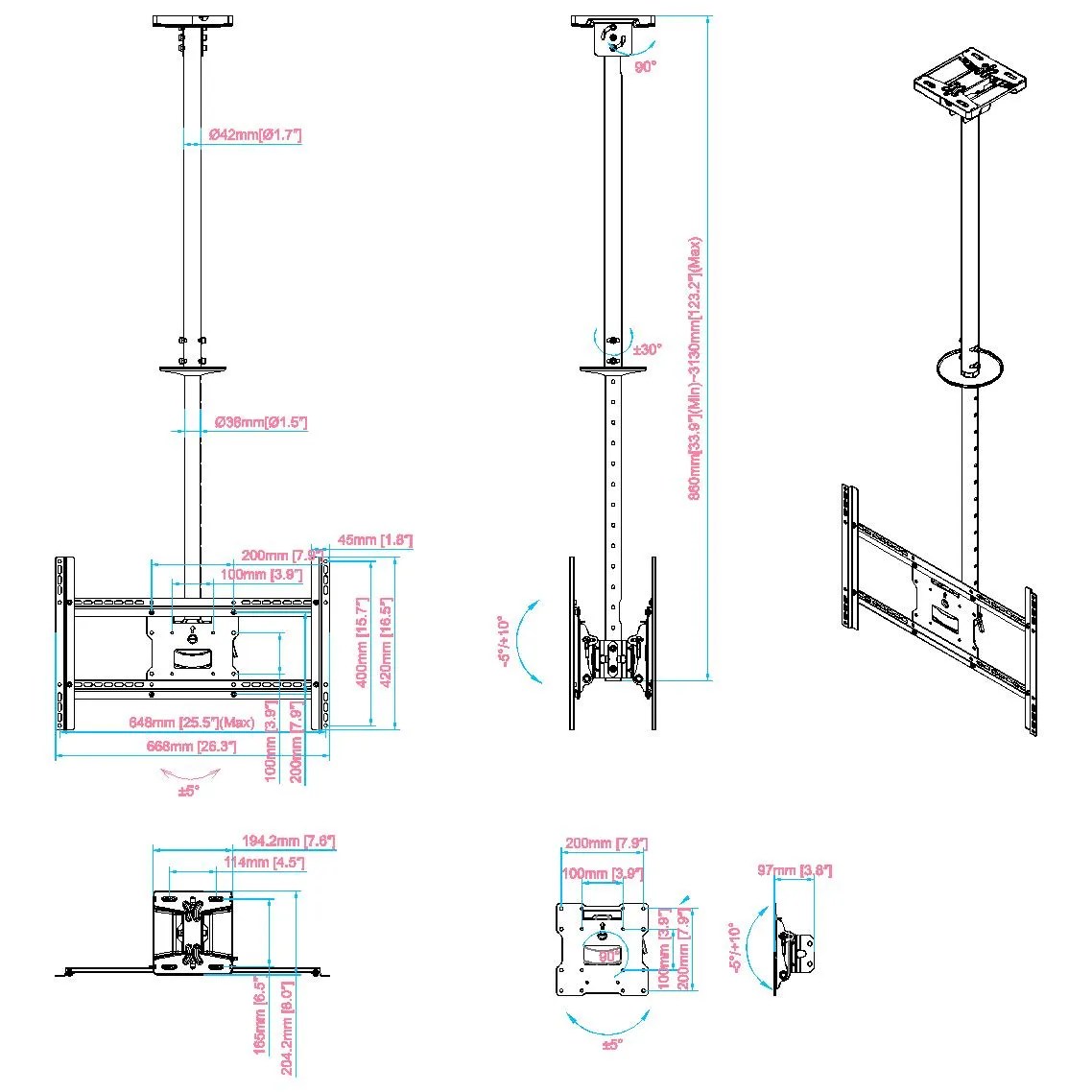

Measurements and Technical Specification: SMCM300D Technical Summary

---

❓ FAQs – 32″–80″ Double Sided Ceiling Mount – 3000mm Drop (SMCM300D)

1️⃣ What does “double sided” mean?

This mount allows you to install two TVs back-to-back, so the screens can be viewed from both sides.

---

2️⃣ What TV sizes does this mount support?

The SMCM300D is designed for 32″–80″ TVs, with a maximum total load of 75kg.

---

3️⃣ Can the screens be rotated between portrait and landscape?

Yes.
Both screens can be rotated without removing the TVs from the mount, making it easy to switch between landscape and portrait orientation as needed.

---

4️⃣ How is the height adjusted?

Height is adjusted by adding or removing pole sections, allowing you to customise the drop between 860mm and 3130mm.

---

5️⃣ Can I adjust the viewing angle?

Yes.
The mount provides +15° to -5° tilt and 30° swivel left and right, making it easier to optimise screen visibility.

---

6️⃣ Is this suitable for high ceilings?

Yes.
With a drop of over 3 metres, additional extension poles can be added up to a maximum drop of 6 metres, making it ideal for high ceiling installations.

---

7️⃣ Can this mount be used on a sloping ceiling?

Yes.
The ceiling plate supports installation on flat or sloped ceilings up to 90°.

---

8️⃣ Can I use this with the SMCM80XL system?

No.
This mount uses a 42mm pole system and is not compatible with the 50mm SMCM80XL system.
