32″–55″ Full Motion TV Mount (SCL06)

SureMount 40″–80″ Slim Profile Full Motion TV Mount (SCL06)

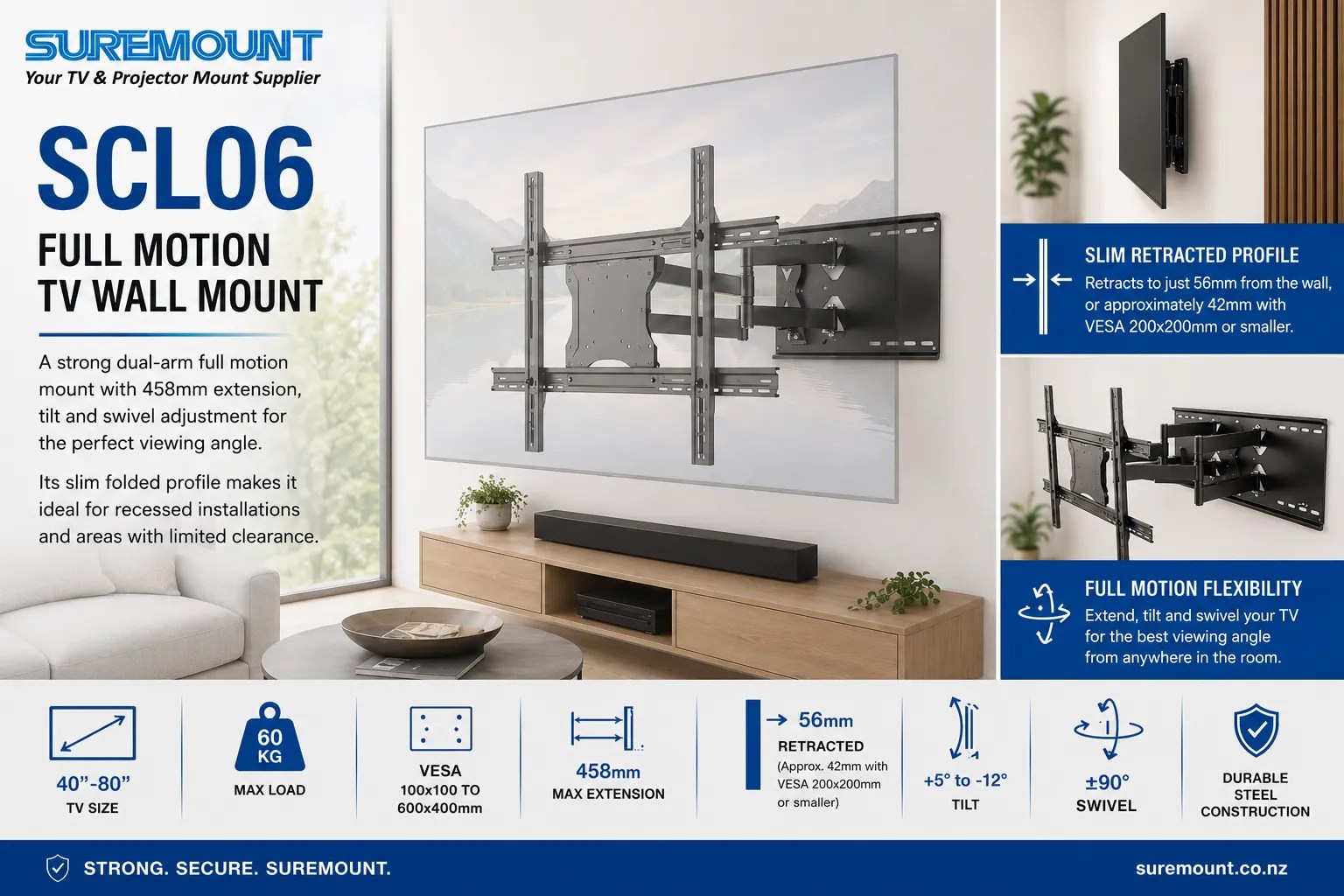

The SureMount SCL06 Full Motion TV Mount is a strong, versatile dual-arm bracket designed for medium to large TVs where full-motion flexibility and a slim folded profile are important.

Supporting TVs up to 80″ and 60kg, the SCL06 combines substantial load capacity with a relatively compact 458mm maximum extension. The full-motion design allows the television to extend, tilt and swivel, making it easy to adjust the screen for different seating positions, viewing angles or changing light conditions.

One of the SCL06’s standout features is its slim retracted depth. The mount sits just 56mm from the wall, reducing to approximately 42mm when used with VESA patterns of 200×200mm or smaller. This makes it particularly well suited to recessed TV installations, where space behind the television can be limited but full-motion adjustment is still required.

The dual-arm design provides strong, stable support for larger televisions, while integrated cable management helps keep the installation tidy as the TV moves in and out.

For installations that don’t require the extreme extension of the SCL05XL or SCL10XL, the SCL06 provides an excellent balance of strength, movement, slim depth and everyday practicality.

---

🟨 Key Features

📺 Fits most 40″–80″ TVs

⚖️ Maximum weight capacity: 60kg

🔲 Supports VESA mounting patterns up to 600×400mm

↔️ Maximum reach: 458mm

📏 Slim 56mm retracted depth

📐 Approximately 42mm depth with VESA 200×200mm or smaller

💪 Dual-arm design provides strong, stable support for larger TVs

🔄 Full motion design – extend, tilt and swivel

↕️ Tilt range: +5° to -12°

🔃 Wide swivel range for flexible viewing positions

🖼️ Particularly well suited to recessed TV installations

🏠 Excellent choice where full motion is required without an extra-long arm

🔌 Integrated cable management system

🛡️ Strong steel construction for long-term durability

🔧 Includes full mounting hardware for wall and TV installation

---

📐 40″–80″ Full Motion TV Mount (SCL06) Measurements

📏 Backplate: 635 × 245mm

🔲 Maximum VESA: 600 × 400mm

↔️ Maximum reach: 458mm

📐 Standard retracted depth: 56mm

📐 Retracted depth with VESA 200×200mm or smaller: approximately 42mm

⚖️ Maximum load: 60kg

The physical dimensions of the front mounting assembly and the supported VESA mounting-hole pattern are different measurements. Always check the VESA mounting-hole positions on your television when confirming compatibility.

---

📄 Technical Documents

📐 SCL06 Measurements – View SCL06 Measurements PDF

📘 SCL06 Product Manual – View SCL06 Product Manual

📄 SCL06 Datasheet – SureMount_SCL06_Datasheet

---

🖼️ Why the SCL06 Works So Well for Recessed TV Installations

A recessed television can create an exceptionally clean, built-in appearance, but the bracket behind the television can quickly become the limiting factor.

The SCL06 is particularly well suited to this type of installation.

📏 Slim Retracted Profile

The SCL06 sits approximately 56mm from the wall, reducing to around 42mm when used with VESA patterns of 200×200mm or smaller.

This helps minimise the depth required behind the television and can make it easier to achieve a clean recessed installation.

↔️ Pull the TV Forward When Required

With up to 458mm of extension, the television can be pulled forward from the recess before being swivelled.

This is particularly important because the edges of a larger television need to clear the sides of the recess before significant swivel movement is possible.

🔄 Full Motion Adjustment

Once clear of the recess, the television can be tilted and swivelled toward the desired viewing position.

🔌 Easy Access Behind the TV

Being able to pull the television forward also makes it considerably easier to access HDMI, power, aerial, network and other connections behind the screen.

🏠 Clean Finish When Retracted

When you’re finished, the television can be pushed back into the recess, retaining the clean appearance of a built-in installation.

---

💡 Installer Insight

When designing a recess for a full-motion television, don’t base the cavity dimensions solely on the dimensions of the TV.

Allow sufficient clearance around the television so the screen can move forward without contacting the sides, top or bottom of the recess.

Also consider the position of power outlets, HDMI connections and other cabling. These should not interfere with the bracket or be crushed behind the television when it is fully retracted.

The SCL06’s combination of slim folded depth and 458mm extension is particularly useful in this situation. The TV can sit close to the wall when stored but still move far enough forward to provide useful swivel adjustment and easy access behind the screen.

---

💪 Dual-Arm Stability for Larger TVs

The SCL06 uses a dual-arm design, helping distribute the weight of larger televisions across the mounting mechanism.

This provides a more stable feel when extending and repositioning the television, particularly compared with lighter single-arm mounts intended for smaller screens.

With a maximum load capacity of 60kg, the SCL06 provides substantial support while retaining the flexibility of a full-motion bracket.

---

🔍 Where Does the SCL06 Fit in the SureMount Range?

The SCL06 sits in a useful position between our compact full-motion mounts and our extra-long-reach models.

📺 SCL02 – Compact Full Motion

Best suited to smaller televisions where a compact full-motion bracket and moderate extension are required.

🏠 SCL06 – Slim Profile & Larger TVs

Choose the SCL06 when you want support for a larger television, strong dual-arm construction and full-motion adjustment while keeping the TV as close to the wall as practical.

It is particularly well suited to recessed installations.

↔️ SCL05XL – Maximum Reach & Flexibility

Choose the SCL05XL when extra-long reach, corner mounting or maximum positioning flexibility are the priority.

Its 1010mm reach allows the television to be positioned significantly further from the mounting wall.

💪 SCL10XL – Extra-Long Reach & Stability

Choose the SCL10XL when you need substantial extension combined with dual-arm stability, particularly where a large television will be repositioned regularly.

⚖️ Quick Summary

📺 SCL02 → compact full motion for smaller TVs

🖼️ SCL06 → slim profile, recessed installations and larger TVs

↔️ SCL05XL → maximum reach and corner flexibility

💪 SCL10XL → long reach, stability and frequent movement

---

❓ FAQs – 40″–80″ Full Motion TV Mount (SCL06)

1️⃣ What TV sizes does the SCL06 support?

The SCL06 is designed for most 40″–80″ TVs, provided the television weighs no more than 60kg and has a compatible VESA mounting pattern.

Always check TV weight and VESA dimensions rather than relying solely on screen size.

2️⃣ What is the maximum TV weight?

The SCL06 supports televisions weighing up to 60kg.

The maximum load should not be exceeded regardless of the television’s screen size.

3️⃣ What VESA mounting patterns does the SCL06 support?

The SCL06 supports VESA mounting patterns up to 600×400mm, covering a wide range of medium and large televisions.

4️⃣ How far does the SCL06 extend from the wall?

The SCL06 provides up to 458mm of extension, allowing the television to be pulled forward before being swivelled toward the desired viewing position.

5️⃣ How close does the TV sit to the wall?

The standard retracted depth is approximately 56mm.

When used with TVs with a VESA pattern of 200×200mm or smaller, the mounting configuration allows the depth to reduce to approximately 42mm.

6️⃣ Why does the depth reduce with smaller VESA patterns?

With VESA patterns of 200×200mm or smaller, the additional larger-VESA mounting components aren’t required, allowing the television to sit closer to the main bracket assembly.

This reduces the overall mounting depth from approximately 56mm to 42mm.

7️⃣ Is the SCL06 suitable for recessed TV installations?

Yes.

The combination of a slim retracted profile and 458mm extension makes the SCL06 particularly well suited to recessed installations.

The television can be pulled forward from the recess before being swivelled or tilted, then pushed back for a clean built-in appearance.

8️⃣ How much space should I leave around a TV in a recess?

This depends on the size of the television and how much movement you require.

The recess needs sufficient clearance for the television to move forward without contacting the surrounding structure. If you intend to swivel the screen, it must also be able to move far enough forward for the edges of the TV to clear the recess.

9️⃣ Can I tilt the television?

Yes.

The SCL06 provides approximately +5° to -12° tilt adjustment, allowing the vertical viewing angle to be fine-tuned.

🔟 Can I swivel the television?

Yes.

The SCL06 provides wide swivel adjustment for flexible viewing positions.

The actual usable swivel angle will depend on the width of your television and surrounding wall or recess clearance.

1️⃣1️⃣ Can I use the SCL06 in a corner?

Yes.

The extension and swivel movement allow the television to be angled toward a corner or another viewing position.

However, if corner mounting or maximum reach is the primary requirement, the extra-long-reach SCL05XL may be a better choice.

1️⃣2️⃣ Is the SCL06 suitable for larger TVs?

Yes.

The combination of a dual-arm design and 60kg maximum load capacity makes the SCL06 suitable for a wide range of larger televisions, provided the TV’s weight and VESA pattern are within the mount’s specifications.

1️⃣3️⃣ Is the SCL06 suitable for regular movement?

Yes.

The dual-arm construction provides good stability for everyday adjustment.

When moving a larger television, we recommend using both hands and moving the screen smoothly rather than pulling from one corner.

1️⃣4️⃣ Does the SCL06 have cable management?

Yes.

🔌 The SCL06 includes integrated cable management to help organise cables as the television extends and retracts.

Make sure cables have sufficient free length to follow the full movement of the mount without stretching, pinching or snagging.

1️⃣5️⃣ When should I choose the SCL06 instead of an extra-long-reach mount?

Choose the SCL06 when you want strong support for a larger TV, full-motion adjustment and a slim folded profile, but don’t require extreme extension.

If you need to pull the television significantly further into the room or position it across a corner, the SCL05XL or SCL10XL may be more appropriate.

1️⃣6️⃣ Is the SCL06 supplied with mounting hardware?

Yes.

🔧 The SCL06 includes mounting hardware for installation of the bracket and attachment of compatible televisions.

The installer should always ensure the wall structure and fixings are appropriate for the combined load of the bracket and television.
